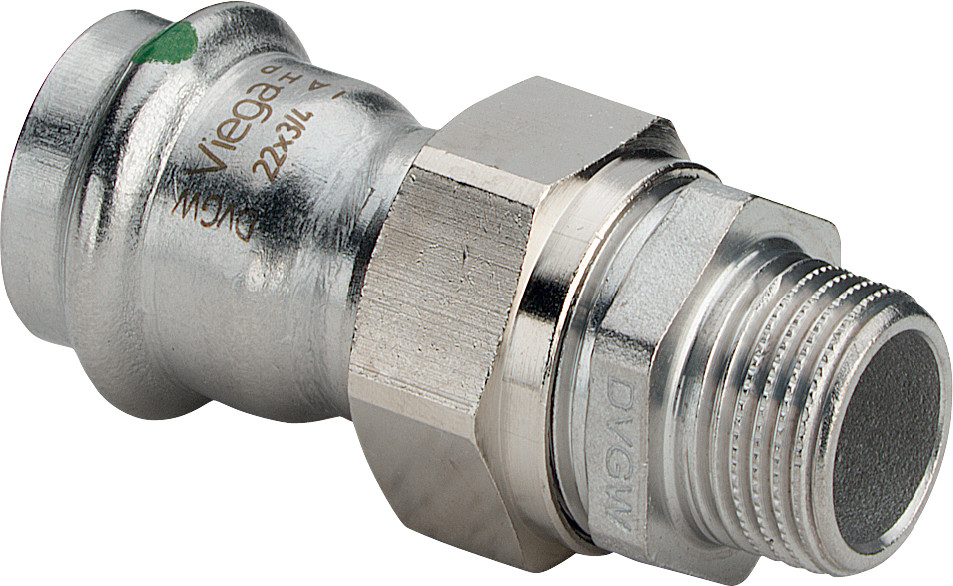

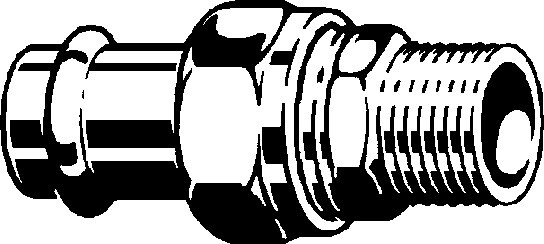

PRESS ADAPTER UNION MT SS 15x1/2 VIEGA
Product code
1282307
V-profile system for domestic water and industrial applications. Fittings feature the SC-Contur property, which enables detection of leaks in a non-pressurized connection during a pressure test. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 316 (1.4401)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 316 (1.4401)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model2-part
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 115 mm
Connection 1Press sleeve
Product codes
SAPCBI394
HPAC1282307
PLC1282307
GTIN/EAN4015211438258
Manufacturer part number438258
Vendor material number438258
Basic information
Package measurements (L x W x H)68 x 30 x 30 mm
Package volume0.061 l
Package weight0.13 kg
Base uniteach
Package units1 / 5 / 20
Package contents–
UNSPSC40172507
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.015
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
