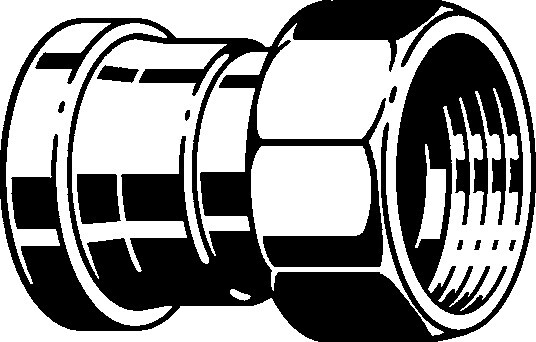

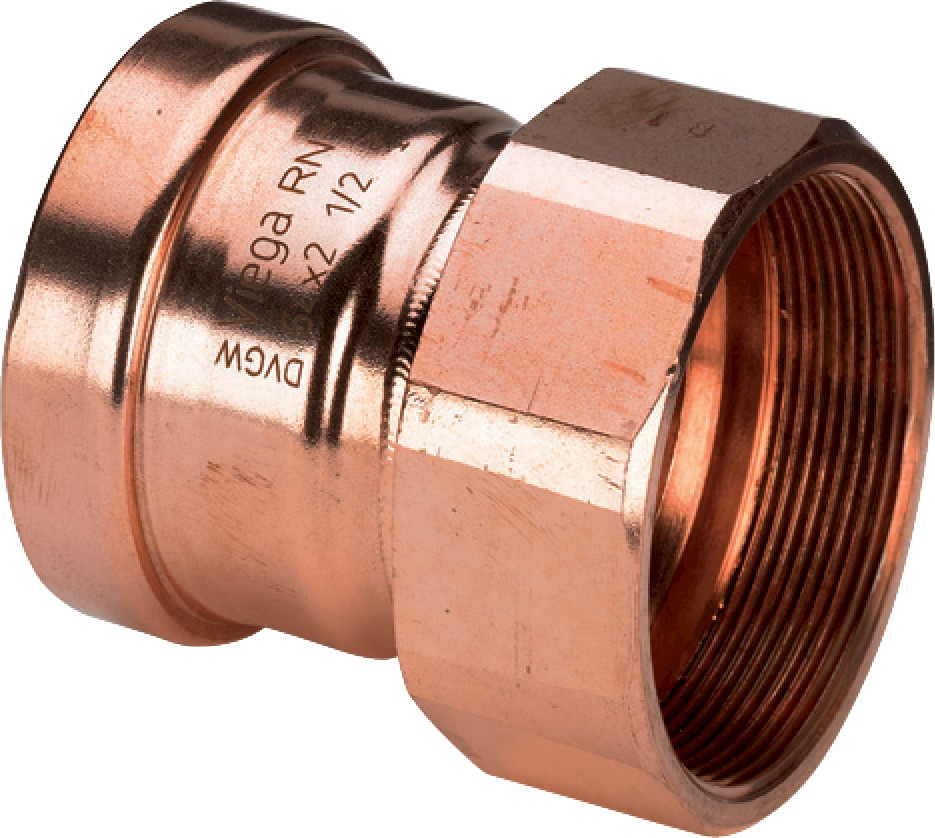

PRESS ADAPTER WITH FT Cu 64x2 1/2 VIEGA
Product code
1546787
V-profile system for domestic water, heating, and cooling applications; compatibility with other systems' O-rings must be verified. Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring made of EPDM, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Copper
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Copper
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 164 mm
Connection 1Press sleeve
Product codes
SAPCBW588
HPAC1546787
PLC1546787
GTIN/EAN4015211577667
Manufacturer part number577667
Vendor material number577667
Basic information
Package measurements (L x W x H)105 x 90 x 90 mm
Package volume0.851 l
Package weight0.77 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.2119
GWP, uniteach
Source for GWP dataEPD
