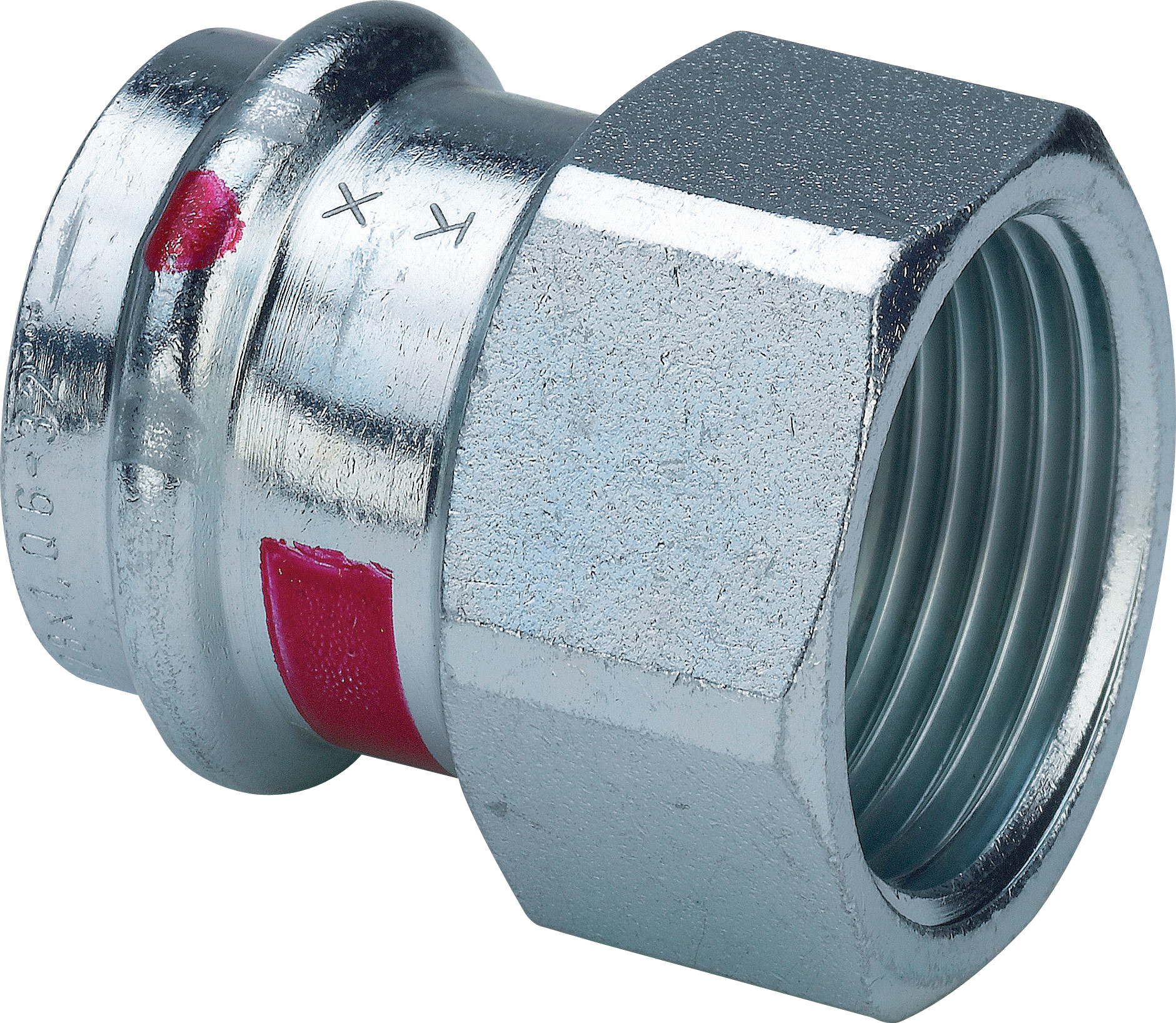

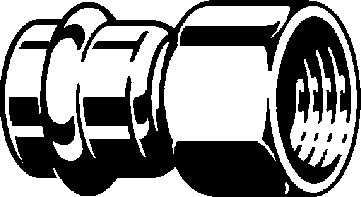

PRESS ADAPTER WITH FT ZN 15x1/2 VIEGA
Product code
0482659
V-profile system for industrial and heating equipment use, not suitable for drinking water systems. Connections feature the SC-Contur property, which enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Zinc
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Zinc
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 115 mm
Connection 1Press sleeve
Product codes
SAPANB064
HPAC0482659
PLC0482659
GTIN/EAN4015211559557
Manufacturer part number559557
Vendor material number559557
Basic information
Package measurements (L x W x H)40 x 25 x 25 mm
Package volume0.025 l
Package weight0.039 kg
Base uniteach
Package units1 / 5 / 150
Package contents–
UNSPSC40172518
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.2515
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
