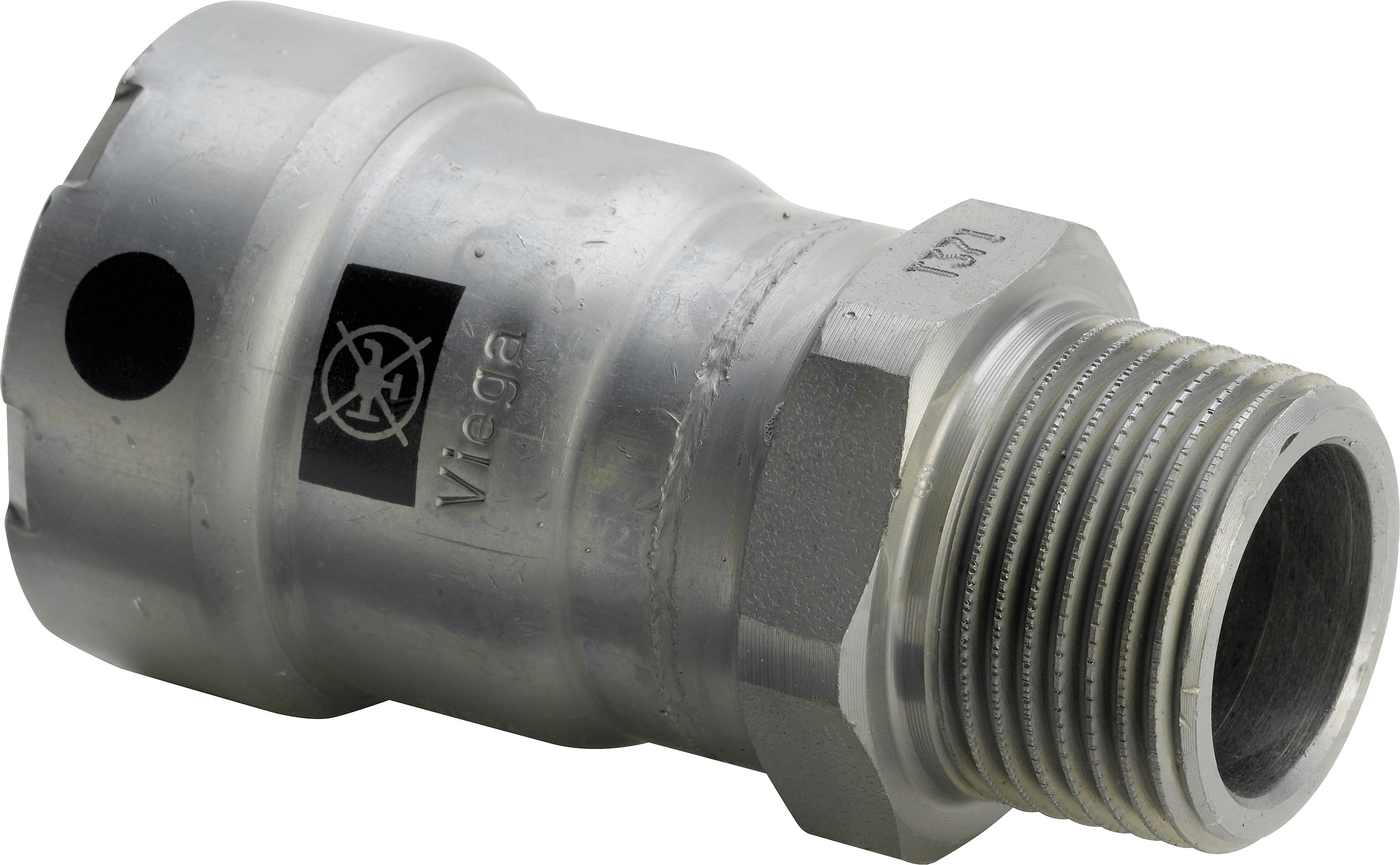

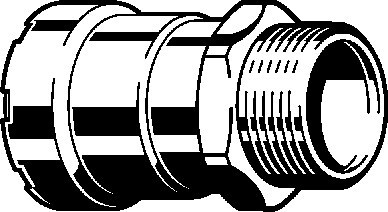

PRESS ADAPTER WITH MT 4211 DN10x1/2 MEGAPRESS
Product code
0760149
The Megapress system is suitable for installation in heating, cooling, and industrial systems together with steel pipes in accordance with DIN EN 10225 and DIN EN 10220.
Features- Not suitable for use in potable water systems or for flammable gases according to DVGW G260.
- Megapress fittings may only be used together with components belonging to the system.
- Compression fittings have a leak indicator, causing clearly visible leaks if the connection is not compressed.
- Maximum operating temperature and pressure class in water circuits is 110 °C at 16 bar.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Steel
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Zinc/nickel
Surface treatment connection 1Other
Material connection 2Steel
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Zinc/nickel
Surface treatment connection 2Other
ShapeStraight
Model1-part
Reducingyes
Eccentricno
System specificyes
Nominal diameter connection 13/8 inch (10)
Outer pipe diameter connection 117.2 mm
Product codes
SAPCDU535
HPAC0760149
PLC0760149
GTIN/EAN4015211740160
Manufacturer part number740160
Vendor material number740160
Basic information
Package measurements (L x W x H)61 x 26 x 26 mm
Package volume0.041 l
Package weight0.08 kg
Base uniteach
Package units1 / 10 / 100
Package contents–
UNSPSC40172518
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (10)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.7744
GWP, uniteach
Source for GWP dataEPD
