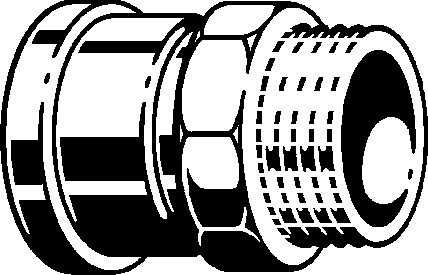

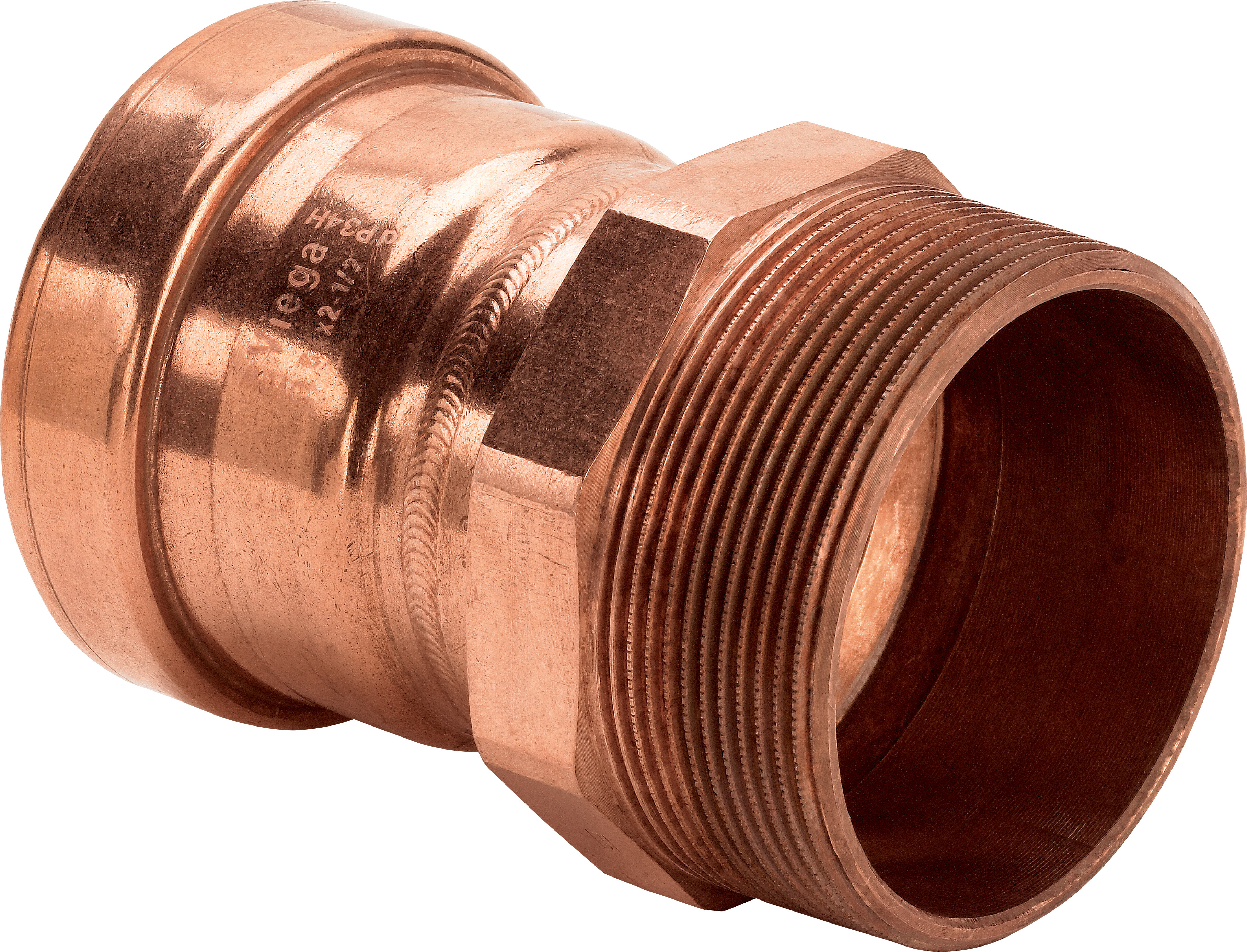

PRESS ADAPTER WITH MT Cu 108x4 VIEGA
Product code
1546749
V-profile system for domestic water, heating and cooling systems "compatibility with other systems' O-rings to be verified". Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring EPDM max. +110C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Copper
Material connection 2Copper
ShapeStraight
Bend angle0 °
Outer pipe diameter connection 1108 mm
Nominal diameter connection 24 inch (100)
Connection 2Press sleeve
Max. operating pressure at 20 °C16 bar
Product codes
SAPCBW586
HPAC1546749
PLC1546749
GTIN/EAN4015211534158
Manufacturer part number534158
Vendor material number534158
Basic information
Package measurements (L x W x H)76.1 x 5 x 77 mm
Package volume0.029 l
Package weight1.673 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)9.1513
GWP, uniteach
Source for GWP dataEPD
