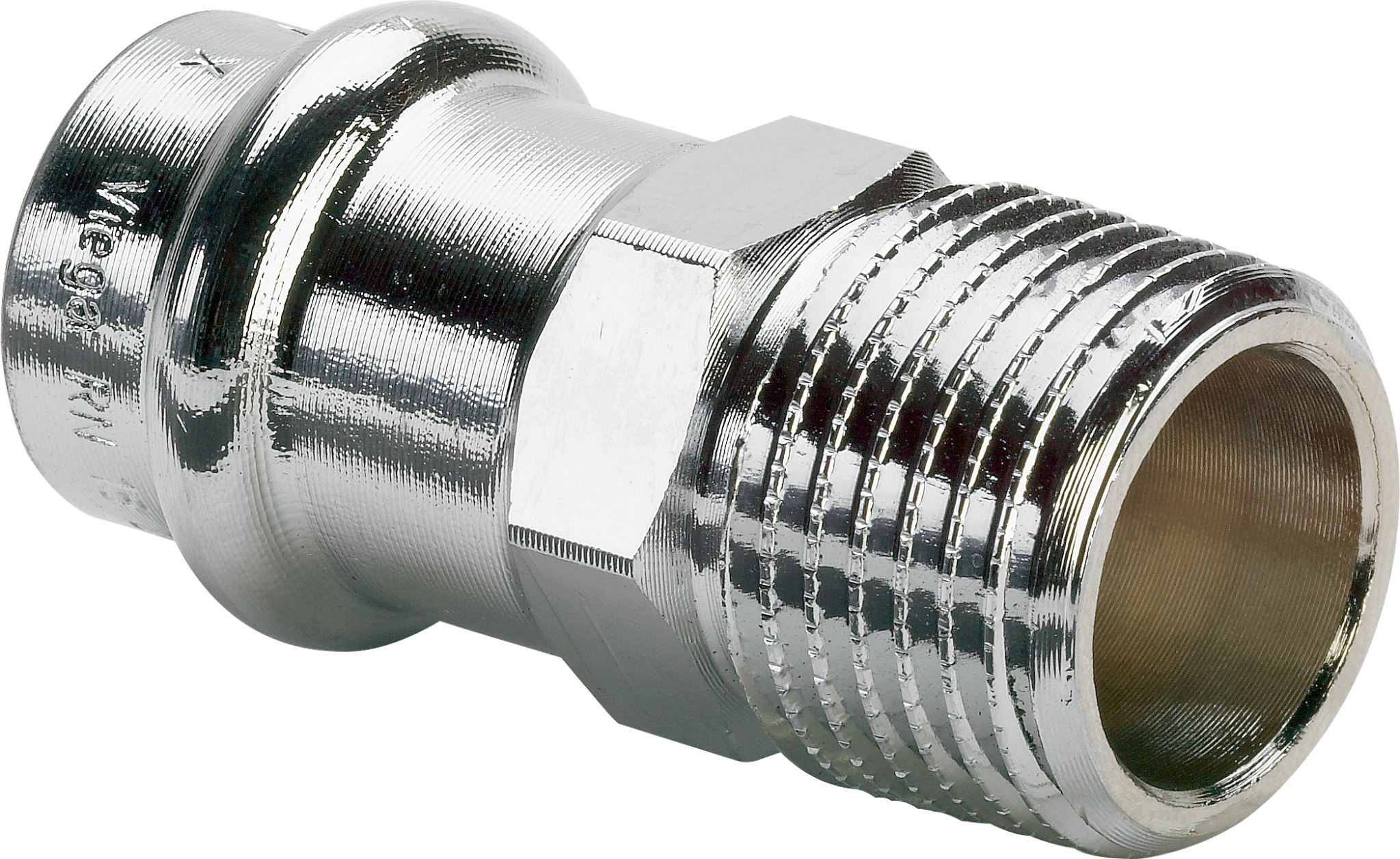

PRESS ADAPTER WITH MT Cu 12x1/2 CHROME VIEGA
Product code
1549532
V-profile system for domestic water, heating, and cooling applications; compatibility with other systems' O-rings must be verified. Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring made of EPDM, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Bronze
ShapeStraight
Outer pipe diameter connection 112 mm
Connection 1Press sleeve
Nominal diameter connection 21/2 inch (15)
Product codes
SAPADC922
HPAC1549532
PLC1549532
GTIN/EAN4015211706869
Manufacturer part number706869
Vendor material number706869
Basic information
Package measurements (L x W x H)40 x 22 x 22 mm
Package volume0.194 l
Package weight0.046 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.4595
GWP, uniteach
Source for GWP dataEPD
