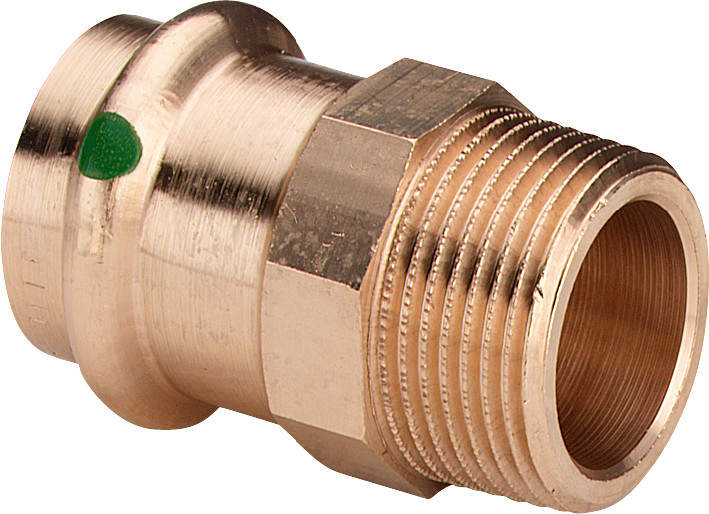

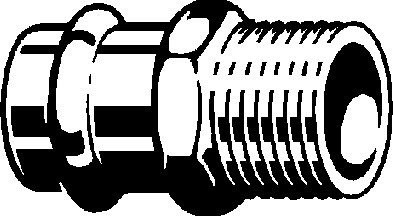

PRESS ADAPTER WITH MT Cu 15x3/8 VIEGA
Product code
1546704
V-profile system for domestic water, heating, and cooling applications; compatibility with other systems' O-rings must be verified. Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring made of EPDM, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Bronze
Material quality connection 1Silicon bronze
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Bronze
Material quality connection 2Silicon bronze
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Bend angle0 °
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 115 mm
Product codes
SAPABS114
HPAC1546704
PLC1546704
GTIN/EAN4015211297985
Manufacturer part number297985
Vendor material number297985
Basic information
Package measurements (L x W x H)40 x 20 x 20 mm
Package volume0.016 l
Package weight0.02 kg
Base uniteach
Package units1 / 5 / 200
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1998
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
