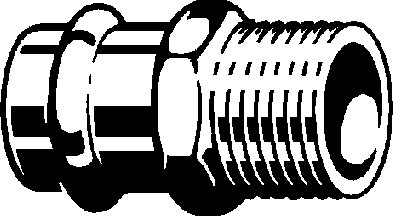

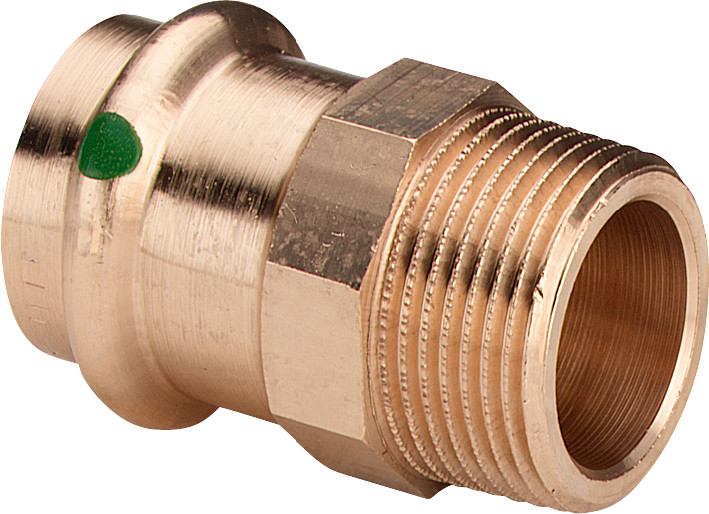

PRESS ADAPTER WITH MT Cu 54x1 1/2 VIEGA
Product code
1546734
V-profile system for domestic water, heating and cooling systems "compatibility with other systems' O-rings to be verified". Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring EPDM max. +110C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Bronze
Material quality connection 1Silicon bronze
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Bronze
Material quality connection 2Silicon bronze
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Bend angle0 °
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 154 mm
Product codes
SAPABS129
HPAC1546734
PLC1546734
GTIN/EAN4015211314668
Manufacturer part number314668
Vendor material number314668
Basic information
Package measurements (L x W x H)100 x 40 x 170 mm
Package volume0.68 l
Package weight0.49 kg
Base uniteach
Package units1 / 25
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.8951
GWP, uniteach
Source for GWP dataEPD
