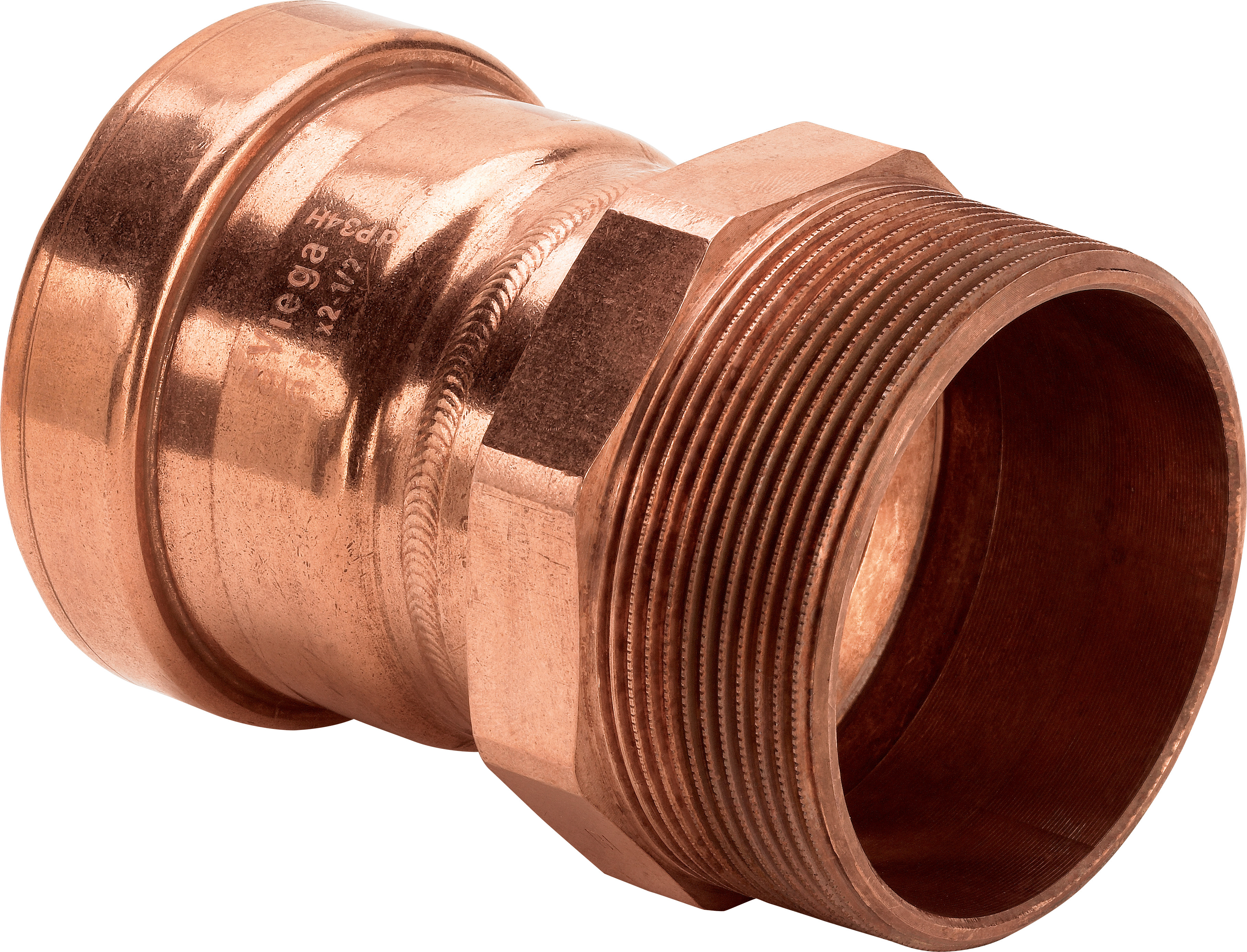

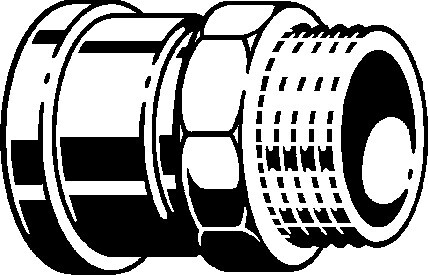

PRESS ADAPTER WITH MT Cu 76,1x2 1/2 VIEGA
Product code
1546745
V-profile system for domestic water, heating and cooling systems "compatibility with other systems' O-rings to be verified". Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring EPDM max. +110C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Bronze
Material connection 2Copper
ShapeStraight
Bend angle0 °
Outer pipe diameter connection 176.1 mm
Connection 1Press sleeve
Nominal diameter connection 22 1/2 inch (65)
Max. operating pressure at 20 °C16 bar
Product codes
SAPCBW612
HPAC1546745
PLC1546745
GTIN/EAN4015211534134
Manufacturer part number534134
Vendor material number534134
Basic information
Package measurements (L x W x H)107.29 x 107.29 x 82 mm
Package volume0.944 l
Package weight0.803 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.3924
GWP, uniteach
Source for GWP dataEPD
