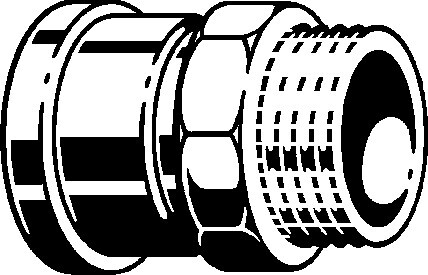

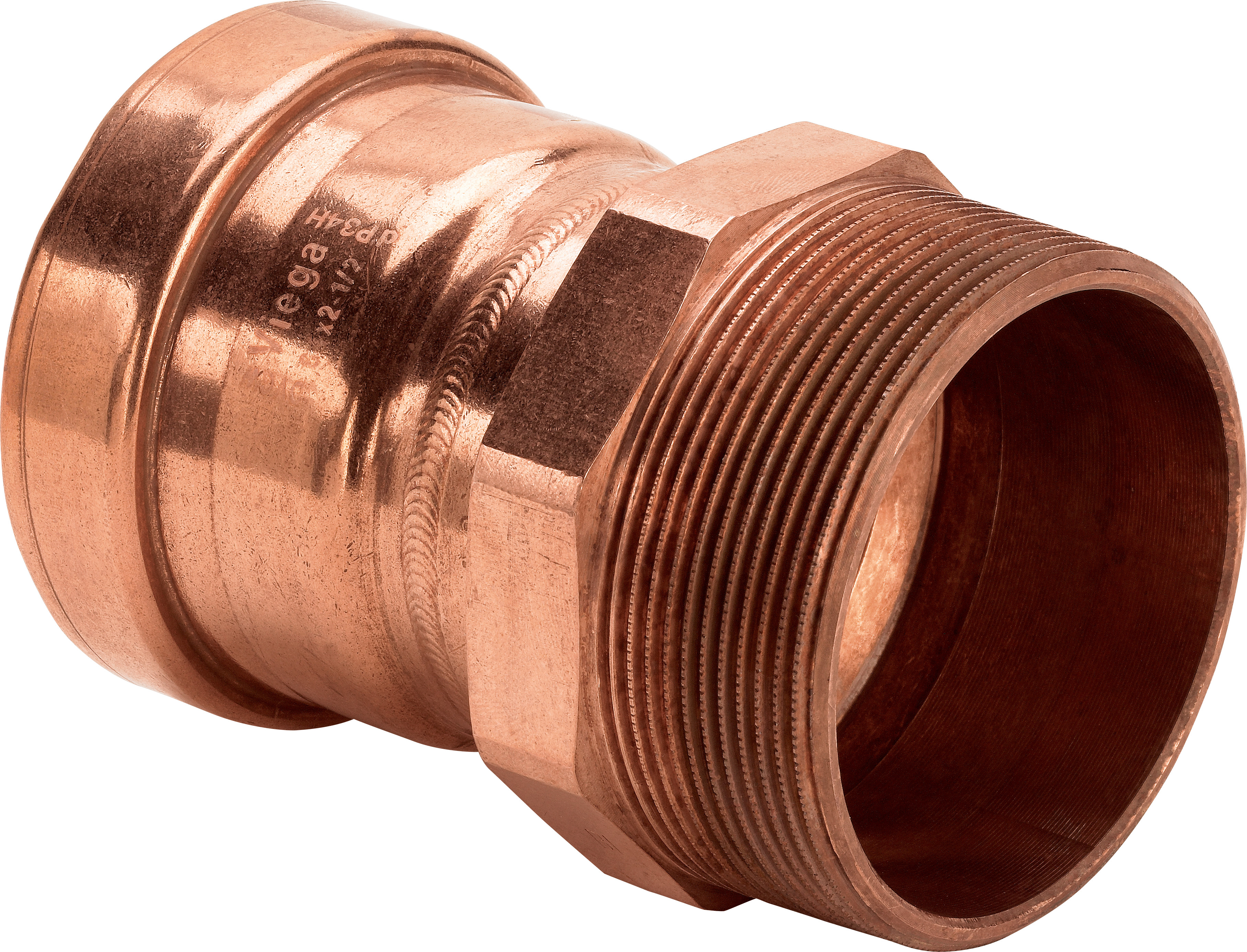

PRESS ADAPTER WITH MT Cu 88,9x3 VIEGA
Product code
1546747
V-profile system for domestic water, heating and cooling systems "compatibility with other systems' O-rings to be verified". Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring EPDM max. +110C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Bronze
Material connection 2Copper
ShapeStraight
Bend angle0 °
Outer pipe diameter connection 188.9 mm
Connection 1Press sleeve
Nominal diameter connection 23 inch (80)
Max. operating pressure at 20 °C16 bar
Product codes
SAPCBW605
HPAC1546747
PLC1546747
GTIN/EAN4015211534141
Manufacturer part number534141
Vendor material number534141
Basic information
Package measurements (L x W x H)100 x 100 x 111.79 mm
Package volume1.118 l
Package weight0.878 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.8027
GWP, uniteach
Source for GWP dataEPD
