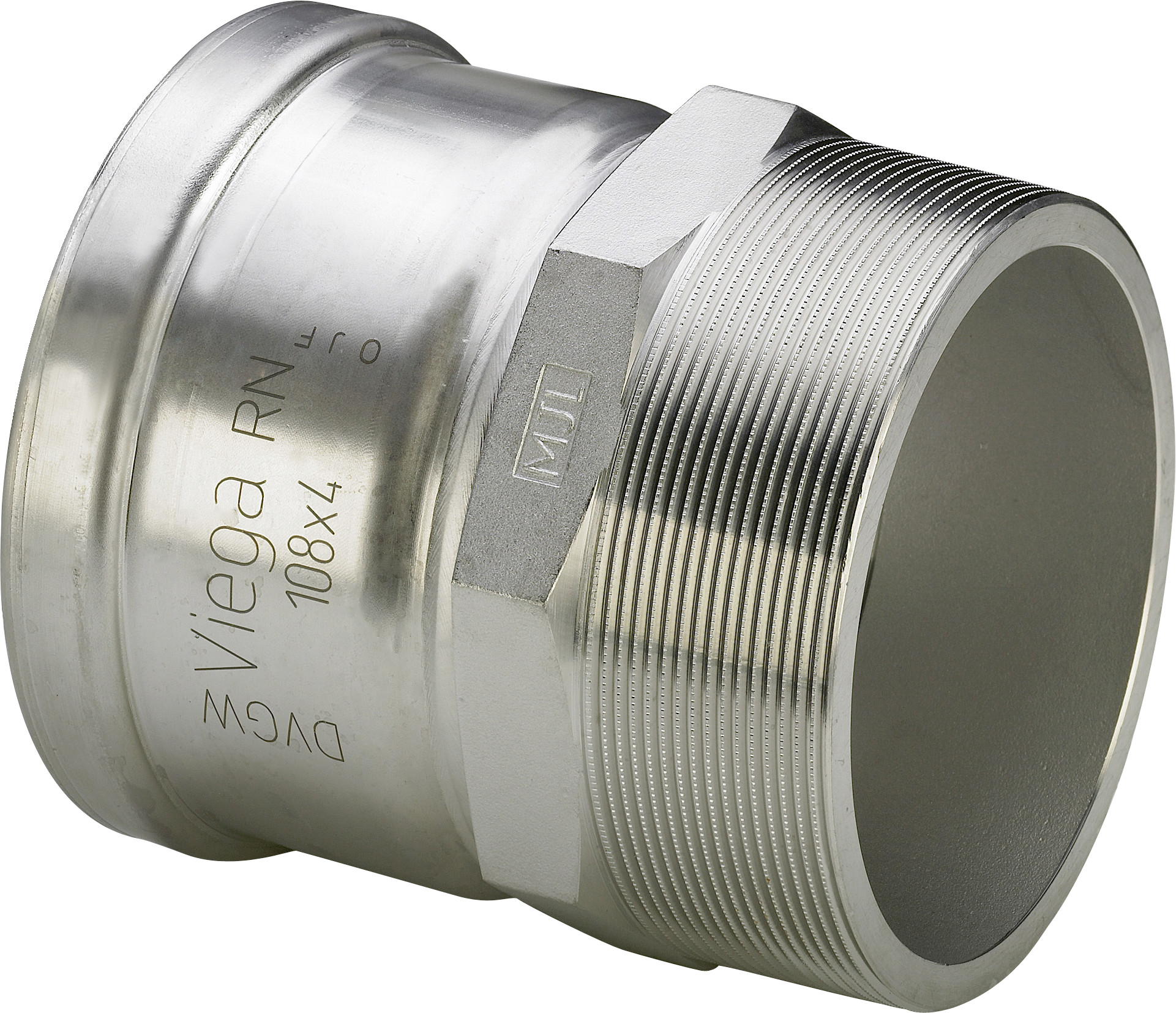

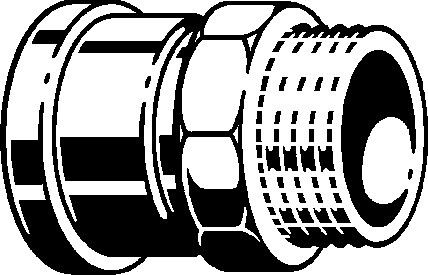

PRESS ADAPTER WITH MT SS 108x4 VIEGA
Product code
1282037
V-profile system for domestic and industrial water systems, featuring SC-Contur property that enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 316 (1.4401)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 316 (1.4401)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 1108 mm
Connection 1Press sleeve
Product codes
SAPCBI283
HPAC1282037
PLC1282037
GTIN/EAN4015211482930
Manufacturer part number482930
Vendor material number482930
Basic information
Package measurements (L x W x H)145 x 116 x 116 mm
Package volume1.951 l
Package weight1.592 kg
Base uniteach
Package units1 / 4
Package contents–
UNSPSC40172607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)24.676
GWP, uniteach
Source for GWP dataEPD
