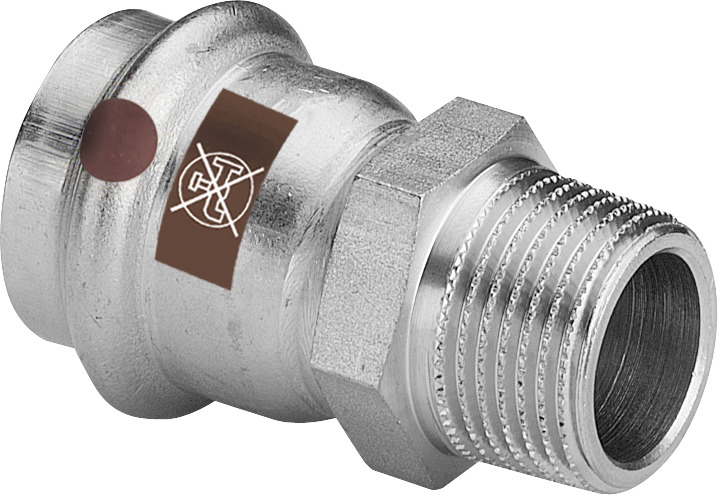

PRESS ADAPTER WITH MT SS 18x1/2 VIEGA
Product code
1272617
V-profile system for heating, industrial, and compressed air systems. Pipes are manufactured from stainless steel 1.4520 and fittings from stainless steel 1.4301. The fittings feature the SC-Contur property, which immediately detects any unpressed connections during pressure testing, preventing hidden leak risks in the building. EPDM O-ring, max. +110°C, pressure class PN16. Not for use with drinking water! This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 304 (1.4301)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 304 (1.4301)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
Reducingno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 118 mm
Connection 1Press sleeve
Contour code connection 1V
Nominal diameter connection 21/2 inch (15)
Product codes
SAPCZU302
HPAC1272617
PLC1272617
GTIN/EAN4015211811518
Manufacturer part number811518
Vendor material number811518
Basic information
Package measurements (L x W x H)50 x 26 x 26 mm
Package volume0.034 l
Package weight0.01 kg
Base uniteach
Package units1 / 5 / 5 / 150 / 6000
Package contents–
UNSPSC40172607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0866
GWP, uniteach
Source for GWP dataEPD
