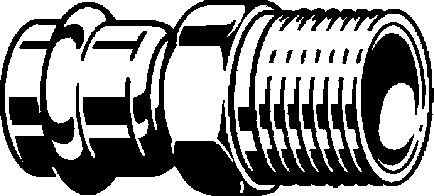

PRESS ADAPTER WITH MT SS 28X1 VIEGA
Product code
1282019
V-profile system for domestic water and industrial applications. Fittings feature the SC-Contur property, which enables detection of leaks in a non-pressurized connection during a pressure test. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 316 (1.4401)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 316 (1.4401)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 128 mm
Connection 1Press sleeve
Product codes
SAPAPK358
HPAC1282019
PLC1282019
GTIN/EAN4015211436520
Manufacturer part number436520
Vendor material number436520
Basic information
Package measurements (L x W x H)60 x 40 x 40 mm
Package volume0.096 l
Package weight0.12 kg
Base uniteach
Package units1 / 5 / 40
Package contents–
UNSPSC40172607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.86
GWP, uniteach
Source for GWP dataEPD
