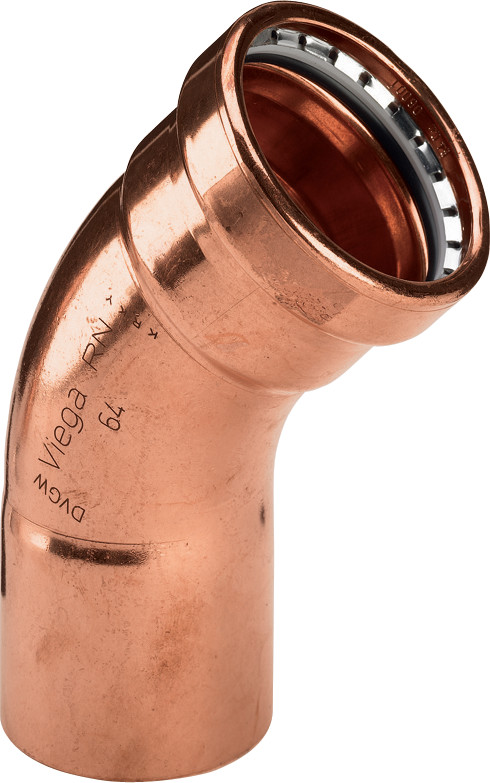

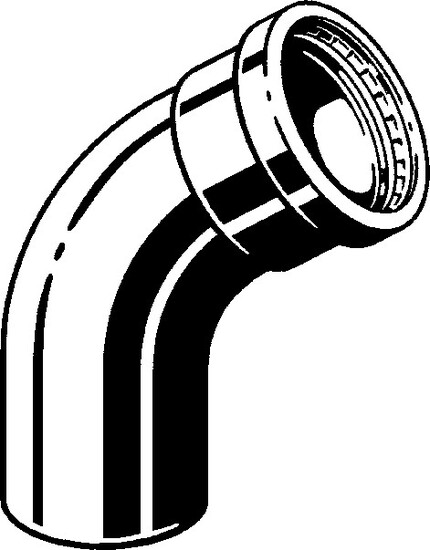

PRESS BEND 45 F/M Cu 108 VIEGA
Product code
1546153
V-profile system for domestic water, heating and cooling systems "compatibility with other systems' O-rings to be verified". Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring EPDM max. +110C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Copper
Material quality connection 1Ethylene-propylene diene monomer rubber (EPDM)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Copper
Material quality connection 2Ethylene-propylene diene monomer rubber (EPDM)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeElbow (fitting)
Model1-part
Bend angle45 °
Reducingno
Eccentricno
System specificyes
Outer pipe diameter connection 1108 mm
Product codes
SAPCBW577
HPAC1546153
PLC1546153
GTIN/EAN4015211476953
Manufacturer part number476953
Vendor material number476953
Basic information
Package measurements (L x W x H)227.99 x 191.184 x 124.98 mm
Package volume5.448 l
Package weight1.911 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)10.4532
GWP, uniteach
Source for GWP dataEPD
