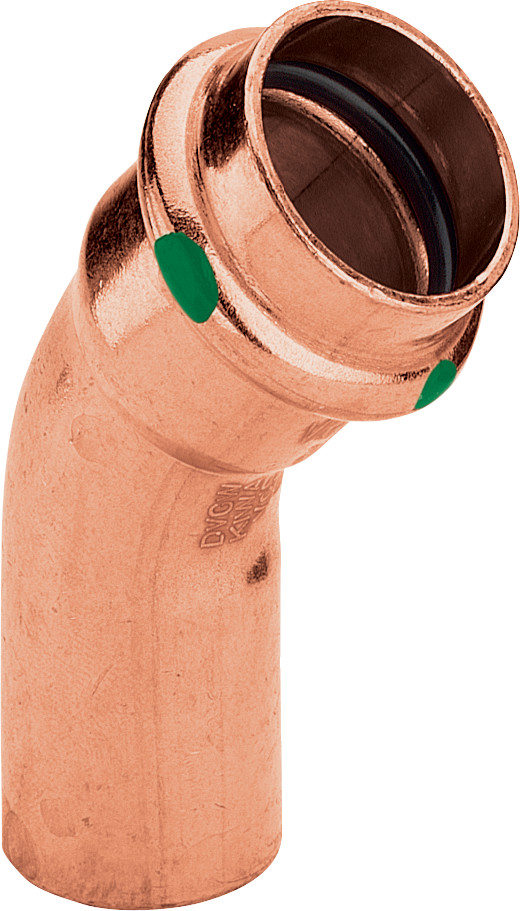

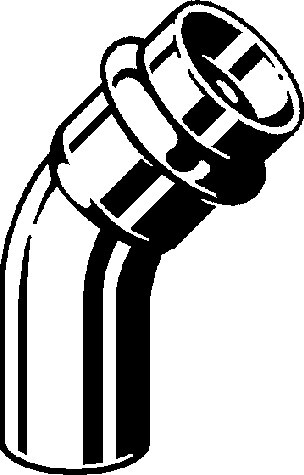

PRESS BEND 45 F/M Cu 22 VIEGA
Product code
1546145
V-profile system for domestic water, heating and cooling applications, compatibility with other systems' O-rings to be verified. Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring made of EPDM, maximum temperature +110 °C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Copper
Material quality connection 1Cu-DHP (CW024A)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Copper
Material quality connection 2Cu-DHP (CW024A)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeElbow (fitting)
Model1-part
Bend angle45 °
Bend radius45 mm
Reducingno
Eccentricno
System specificyes
Product codes
SAPABS027
HPAC1546145
PLC1546145
GTIN/EAN4015211292515
Manufacturer part number292515
Vendor material number292515
Basic information
Package measurements (L x W x H)80 x 30 x 30 mm
Package volume0.072 l
Package weight0.07 kg
Base uniteach
Package units1 / 10 / 100 / 5400
Package contents–
UNSPSC40172103
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (9)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.3829
GWP, uniteach
Source for GWP dataEPD
