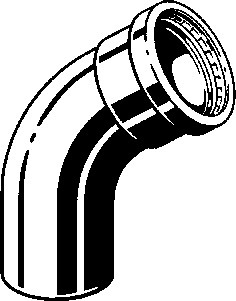

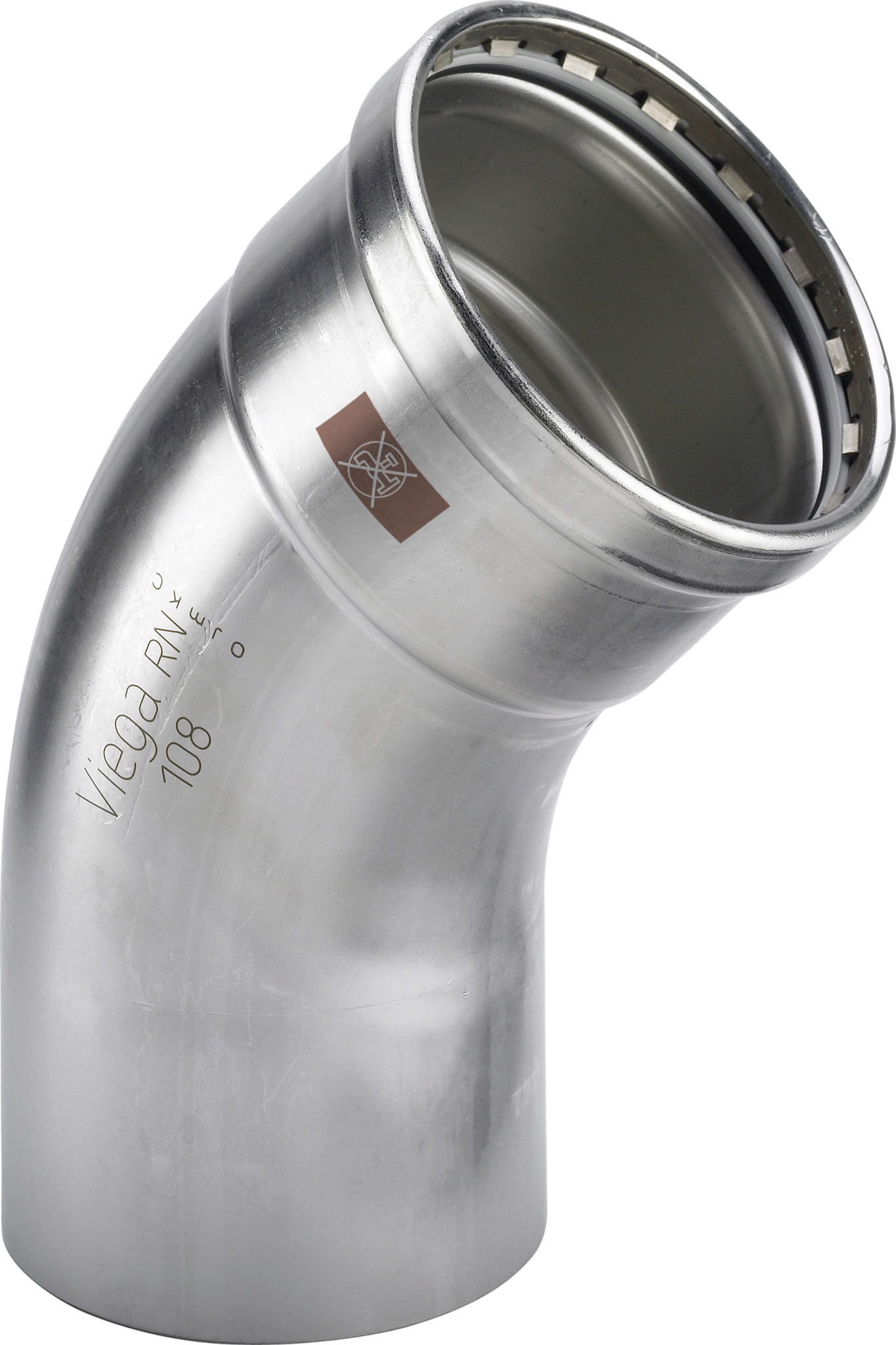

PRESS BEND 45 F/M SS 108 VIEGA
Product code
1272538
V-profile system for heating, industrial, and compressed air systems. Pipes are manufactured from stainless steel 1.4520 and fittings from stainless steel 1.4301. The fittings feature the SC-Contur property, which immediately detects any unpressed connections during pressure testing, preventing hidden leak risks in the building. EPDM O-ring, max. +110°C, pressure class PN16. Not for use with drinking water! This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 304 (1.4301)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 304 (1.4301)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeBend
Model1-part
Bend angle45 °
Bend radius45 mm
Reducingno
Eccentricno
System specificyes
Product codes
SAPCZU295
HPAC1272538
PLC1272538
GTIN/EAN4015211810061
Manufacturer part number810061
Vendor material number810061
Basic information
Package measurements (L x W x H)315 x 175 x 130 mm
Package volume7.166 l
Package weight1.36 kg
Base uniteach
Package units1 / 72
Package contents–
UNSPSC40171707
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)11.7776
GWP, uniteach
Source for GWP dataEPD
