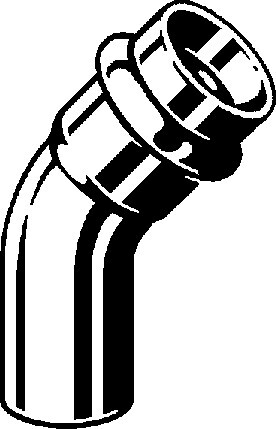

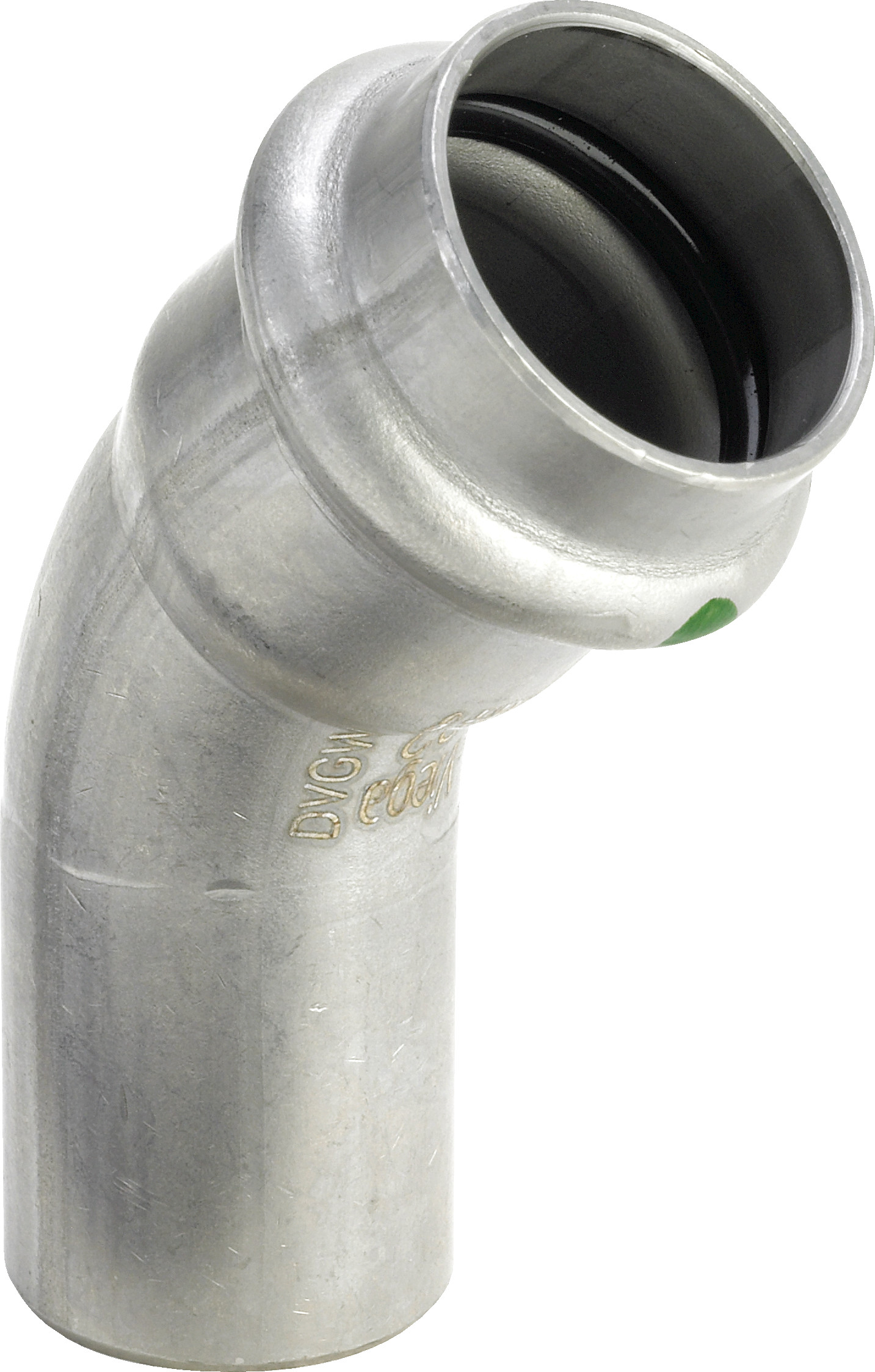

PRESS BEND 45 F/M SS 15 VIEGA
Product code
1280774
V-profile system for domestic water and industrial applications. Fittings feature the SC-Contur property, which enables detection of leaks in a non-pressurized connection during a pressure test. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 316 (1.4401)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 316 (1.4401)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeElbow (fitting)
Model1-part
Bend angle45 °
Bend radius45 mm
Eccentricno
System specificyes
Nominal diameter connection 1Other
Product codes
SAPAPK419
HPAC1280774
PLC1280774
GTIN/EAN4015211435387
Manufacturer part number435387
Vendor material number435387
Basic information
Package measurements (L x W x H)55 x 39 x 22 mm
Package volume0.047 l
Package weight0.03 kg
Base uniteach
Package units1 / 10 / 50
Package contents–
UNSPSC40171707
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.465
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
