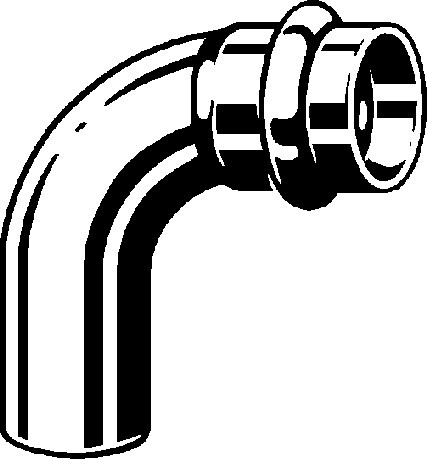

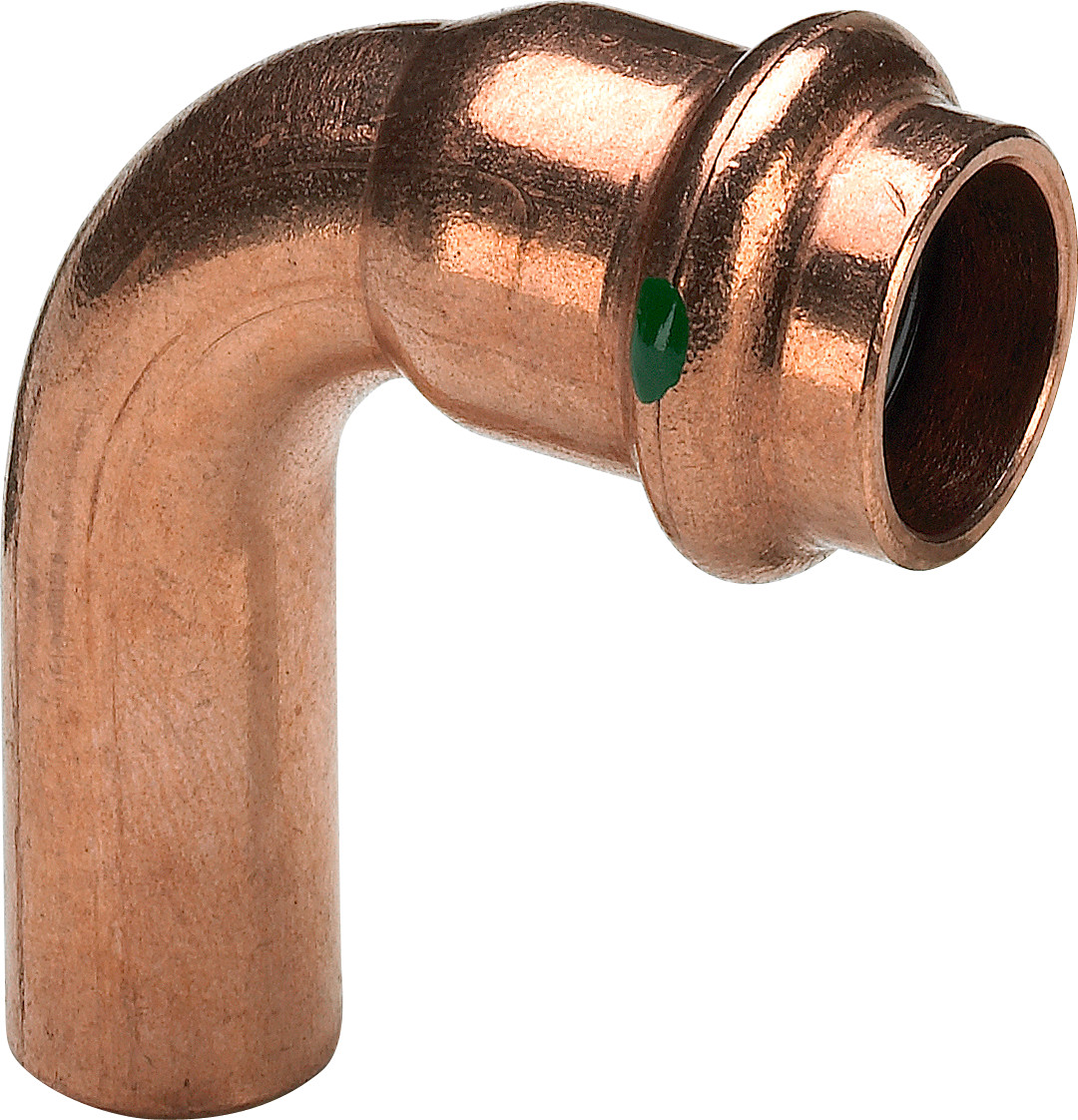

PRESS BEND 90 F/M Cu 42 VIEGA
Product code
1546048
V-profile system for domestic water, heating, and cooling applications; compatibility with other systems' O-rings must be verified. Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring made of EPDM, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Copper
Material quality connection 1Cu-DHP (CW024A)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Copper
Material quality connection 2Cu-DHP (CW024A)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeElbow (fitting)
Model1-part
Bend angle90 °
Bend radius90 mm
Reducingno
Eccentricno
System specificyes
Product codes
SAPABS014
HPAC1546048
PLC1546048
GTIN/EAN4015211291709
Manufacturer part number291709
Vendor material number291709
Basic information
Package measurements (L x W x H)78 x 59 x 59 mm
Package volume0.272 l
Package weight0.347 kg
Base uniteach
Package units1 / 5 / 20
Package contents–
UNSPSC40172103
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (9)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.8981
GWP, uniteach
Source for GWP dataEPD
