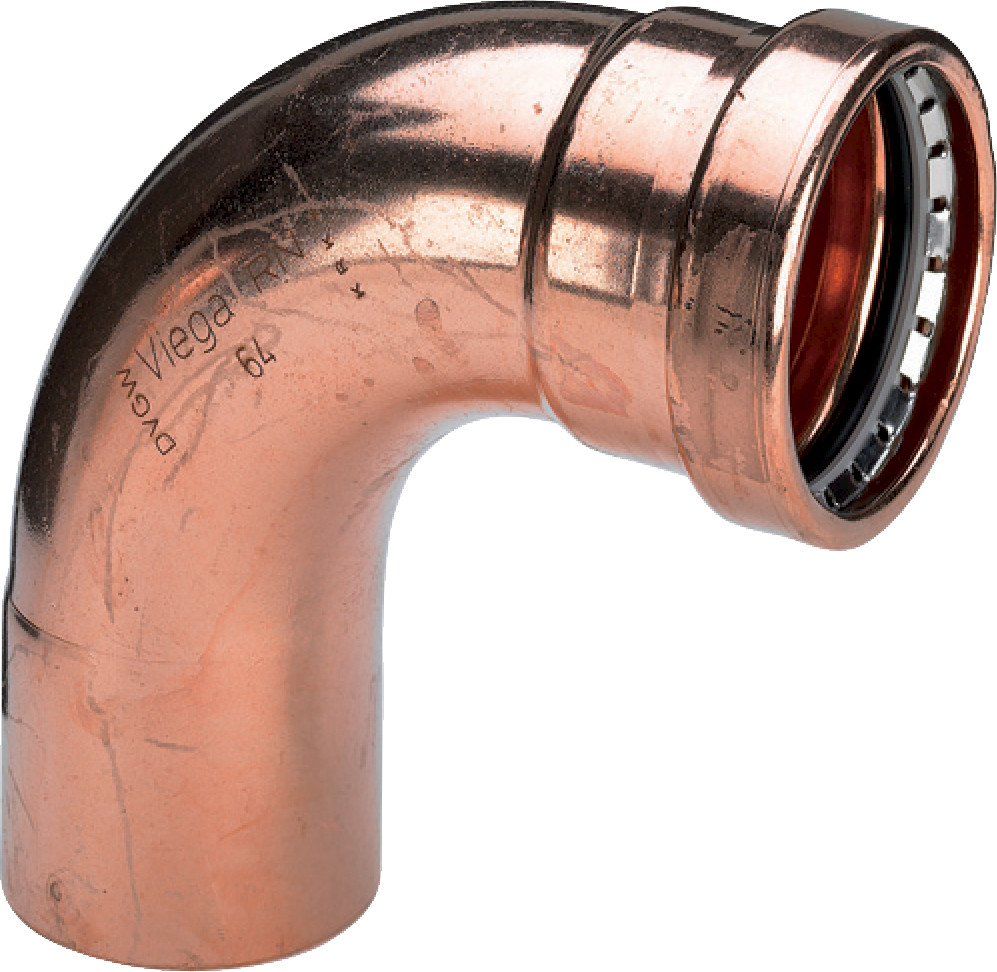

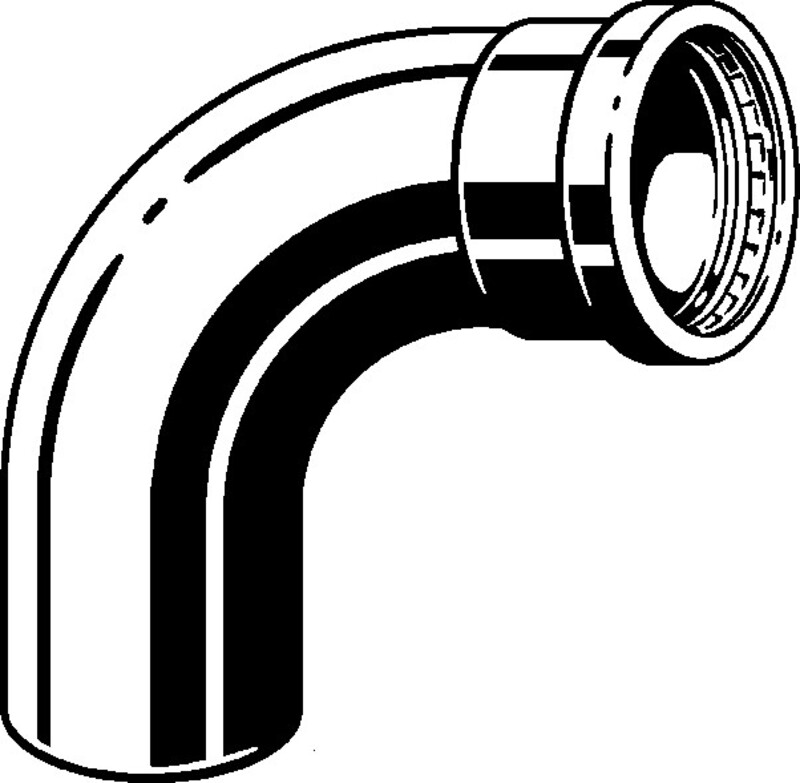

PRESS BEND 90 F/M Cu 76,1 VIEGA
Product code
1546051
V-profile system for domestic water, heating and cooling systems "compatibility with other systems' O-rings to be verified". Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring EPDM max. +110C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Copper
Material quality connection 1Ethylene-propylene diene monomer rubber (EPDM)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Copper
Material quality connection 2Ethylene-propylene diene monomer rubber (EPDM)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeElbow (fitting)
Model1-part
Bend angle90 °
Reducingno
Eccentricno
System specificyes
Outer pipe diameter connection 176.1 mm
Product codes
SAPCBW579
HPAC1546051
PLC1546051
GTIN/EAN4015211476878
Manufacturer part number476878
Vendor material number476878
Basic information
Package measurements (L x W x H)155.97 x 167.521 x 92.99 mm
Package volume2.43 l
Package weight1.19 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.5093
GWP, uniteach
Source for GWP dataEPD
