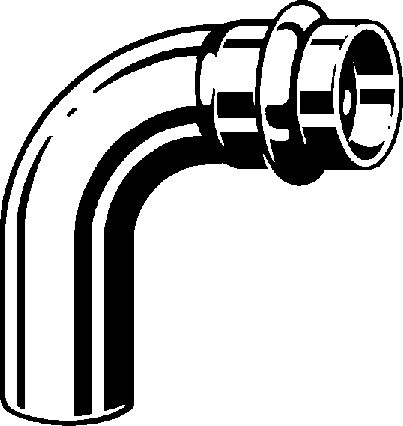

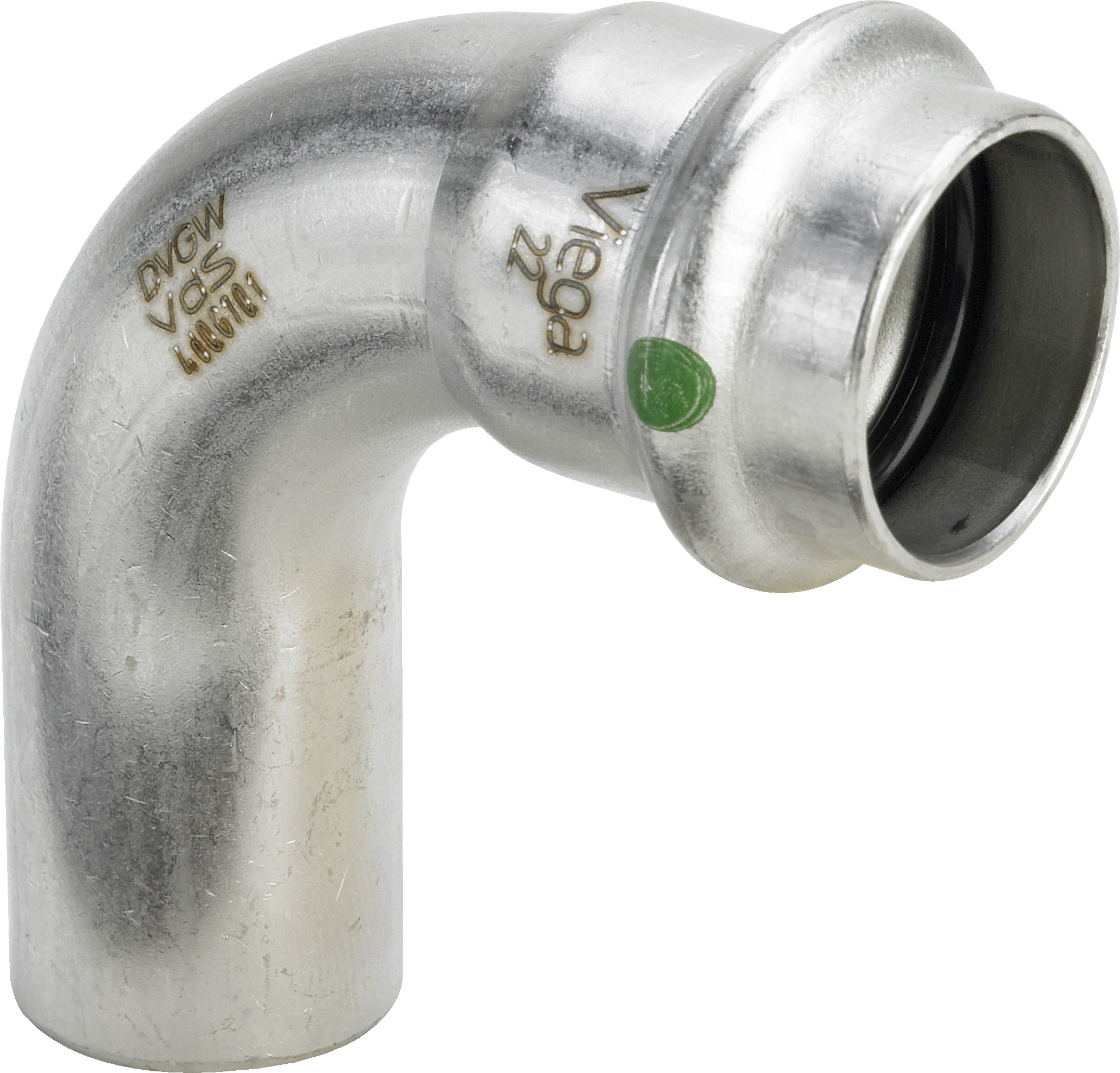

PRESS BEND 90 F/M SS 22 VIEGA

Name: PRESS BEND 90 F/M SS 22 VIEGA
Brand: VIEGA
SKU: APO614

Product code

1280579

No product description available.

Product details

Material connection 1Stainless steel

Material quality connection 1Stainless steel 316 (1.4401)

Material connection 2Stainless steel

Material quality connection 2Stainless steel 316 (1.4401)

ShapeBend

Model1-part

Bend angle90 °

System-specifictrue

Nominal diameter connection 122 mm

Outer pipe diameter connection 122 mm

Connection 1Insert (push-fitting)

Nominal diameter connection 222 mm

Outer pipe diameter connection 222 mm

Connection 2Press sleeve

Material sealingEthylene-propylene diene monomer rubber (EPDM)

SAPAPO614

HPAC1280579

PLC1280579

GTIN/EAN4015211435721

Manufacturer part number435721

Vendor material number435721

Package measurements (L x W x H)68 x 68 x 32 mm

Package volume0.148 l

Package weight0.08 kg

Base uniteach

Package units1 / 10 / 80

Package contents–

UNSPSC40171707

BrandVIEGA

VendorVIEGA CE GMBH & CO. KG
