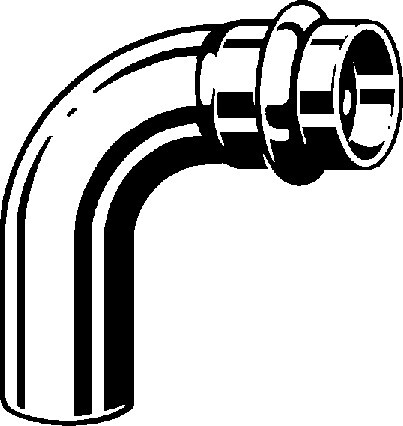

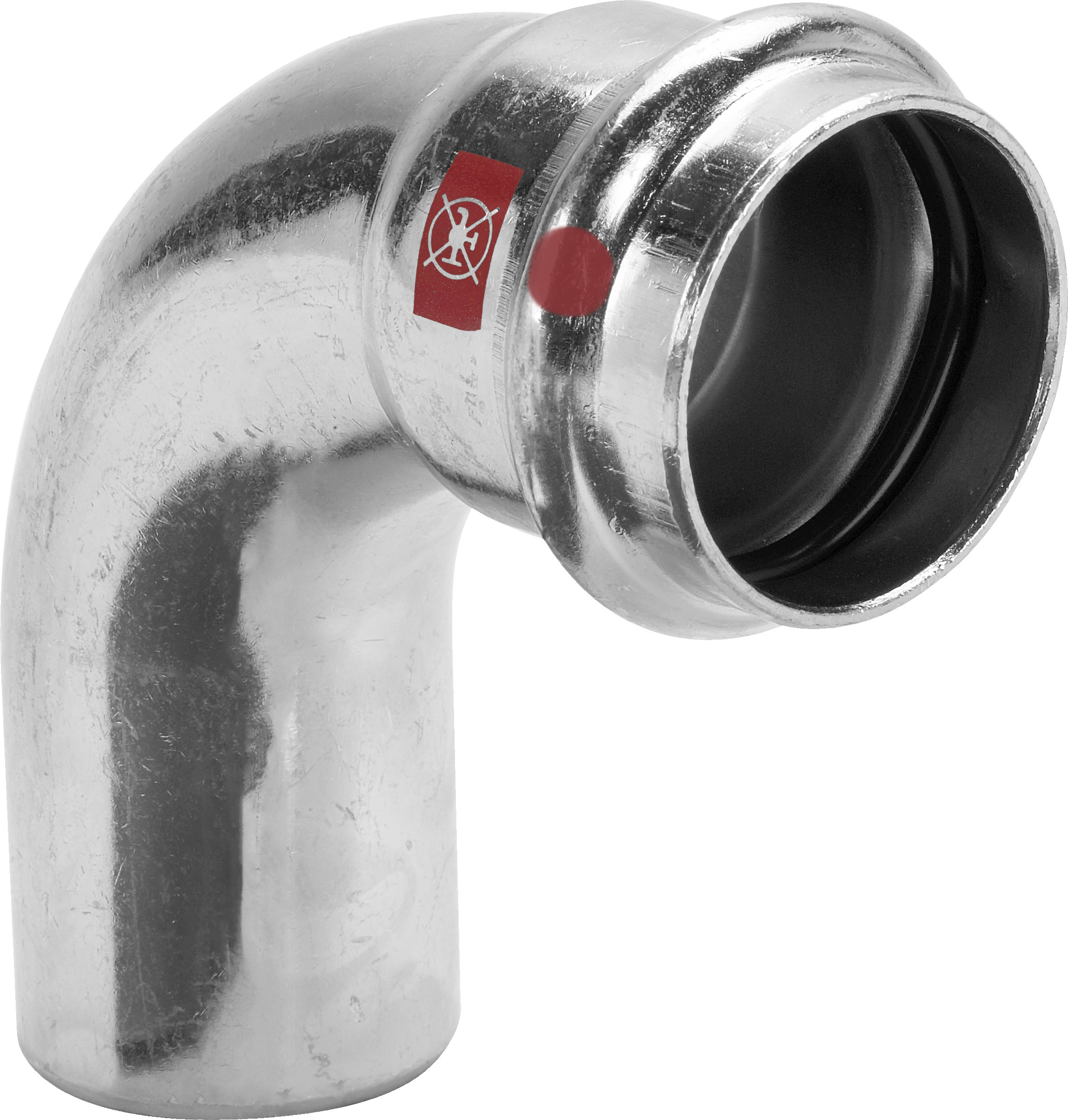

PRESS BEND 90 F/M ZN 12 VIEGA
Product code
0480880
V-profile system for industrial and heating equipment use, not suitable for drinking water systems. Connections feature the SC-Contur property, which enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Zinc
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Zinc
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeElbow (fitting)
Model1-part
Bend angle90 °
Bend radius90 mm
Reducingno
Eccentricno
System specificyes
Product codes
SAPANA986
HPAC0480880
PLC0480880
GTIN/EAN4015211605179
Manufacturer part number605179
Vendor material number605179
Basic information
Package measurements (L x W x H)56 x 18 x 28 mm
Package volume0.028 l
Package weight0.025 kg
Base uniteach
Package units1 / 10 / 250 / 140
Package contents–
UNSPSC40172518
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1613
GWP, uniteach
Source for GWP dataEPD
