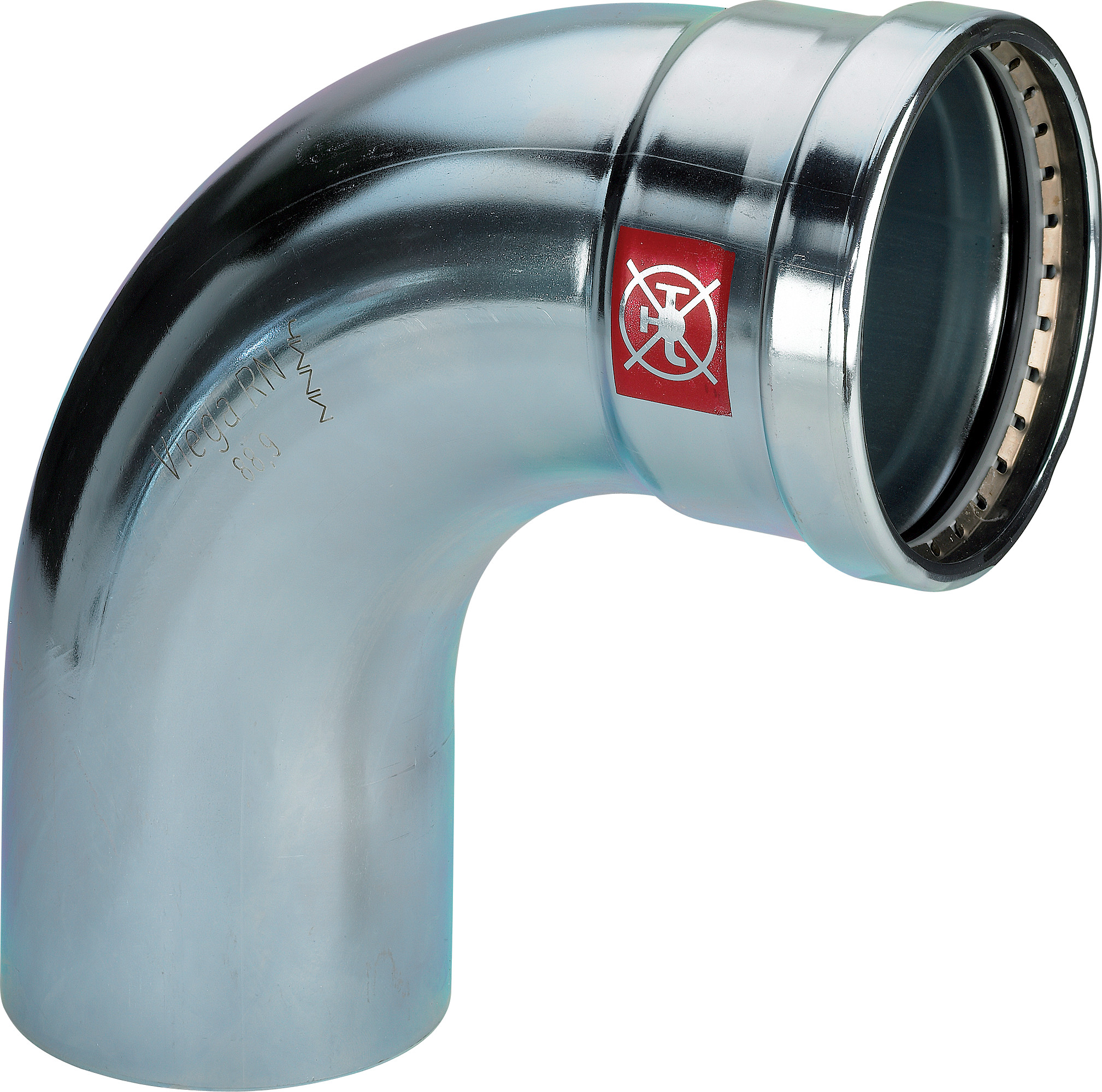

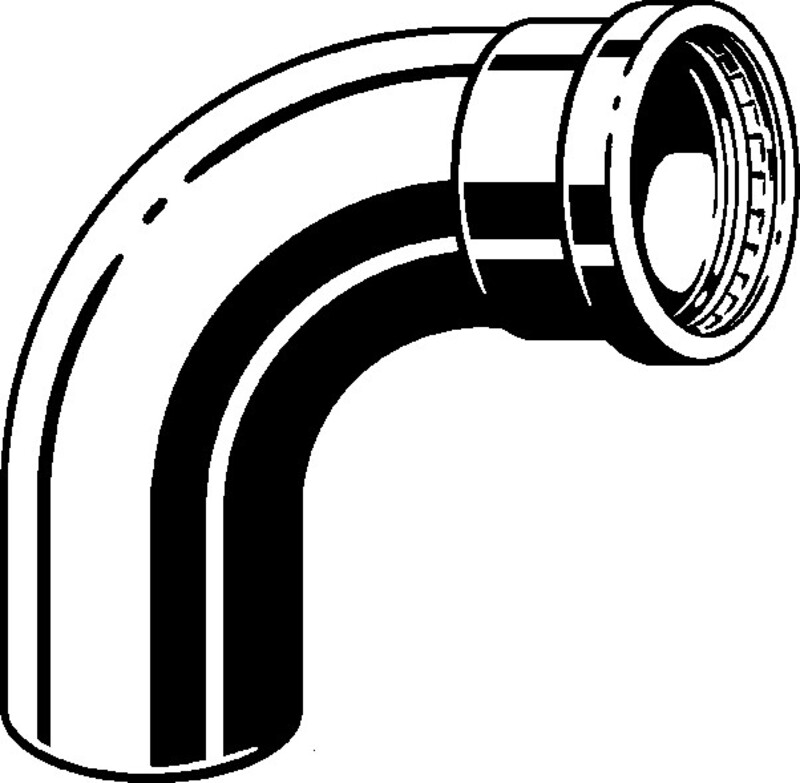

PRESS BEND 90 F/M ZN 76,1 VIEGA
Product code
0480889
V-profile system for industrial and heating equipment use, not suitable for drinking water systems. Connections feature the SC-Contur property, which enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Zinc
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Zinc
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeElbow (fitting)
Model1-part
Bend angle90 °
Bend radius90 mm
Eccentricno
System specificyes
Nominal diameter connection 1Other
Product codes
SAPANA995
HPAC0480889
PLC0480889
GTIN/EAN4015211597658
Manufacturer part number597658
Vendor material number597658
Basic information
Package measurements (L x W x H)190 x 95 x 190 mm
Package volume3.43 l
Package weight0.98 kg
Base uniteach
Package units1 / 3
Package contents–
UNSPSC40172518
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.321
GWP, uniteach
Source for GWP dataEPD
