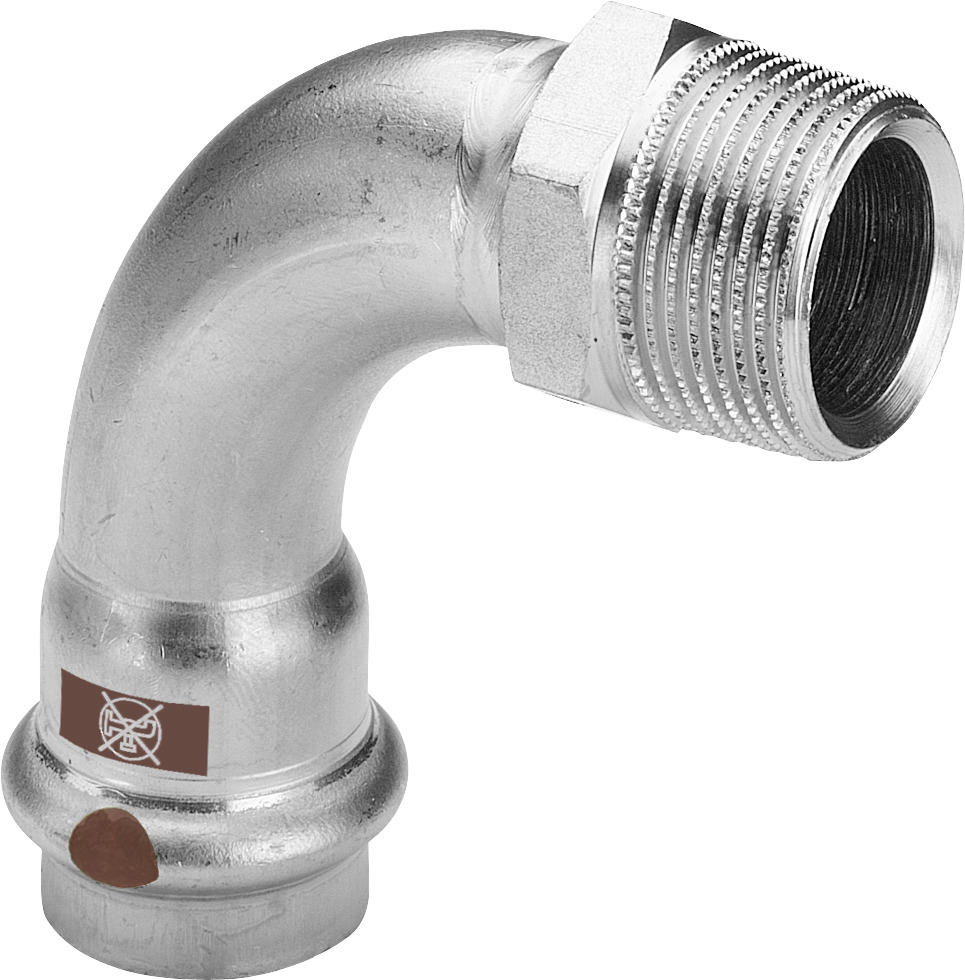

PRESS BEND 90 MT SS 15x3/8 VIEGA
Product code
1272664
V-profile system for heating, industrial, and compressed air systems. Pipes are manufactured from stainless steel 1.4520 and fittings from stainless steel 1.4301. The fittings feature the SC-Contur property, which immediately detects any unpressed connections during pressure testing, preventing hidden leak risks in the building. EPDM O-ring, max. +110°C, pressure class PN16. Not for use with drinking water! This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 304 (1.4301)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 304 (1.4301)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeBend
Model1-part
Bend angle90 °
Bend radius90 mm
Reducingno
Eccentricno
System specificyes
Product codes
SAPCZU401
HPAC1272664
PLC1272664
GTIN/EAN4015211812393
Manufacturer part number812393
Vendor material number812393
Basic information
Package measurements (L x W x H)61 x 25 x 61 mm
Package volume0.452 l
Package weight0.01 kg
Base uniteach
Package units5 / 125 / 6000
Package contents–
UNSPSC40172607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0866
GWP, uniteach
Source for GWP dataEPD
