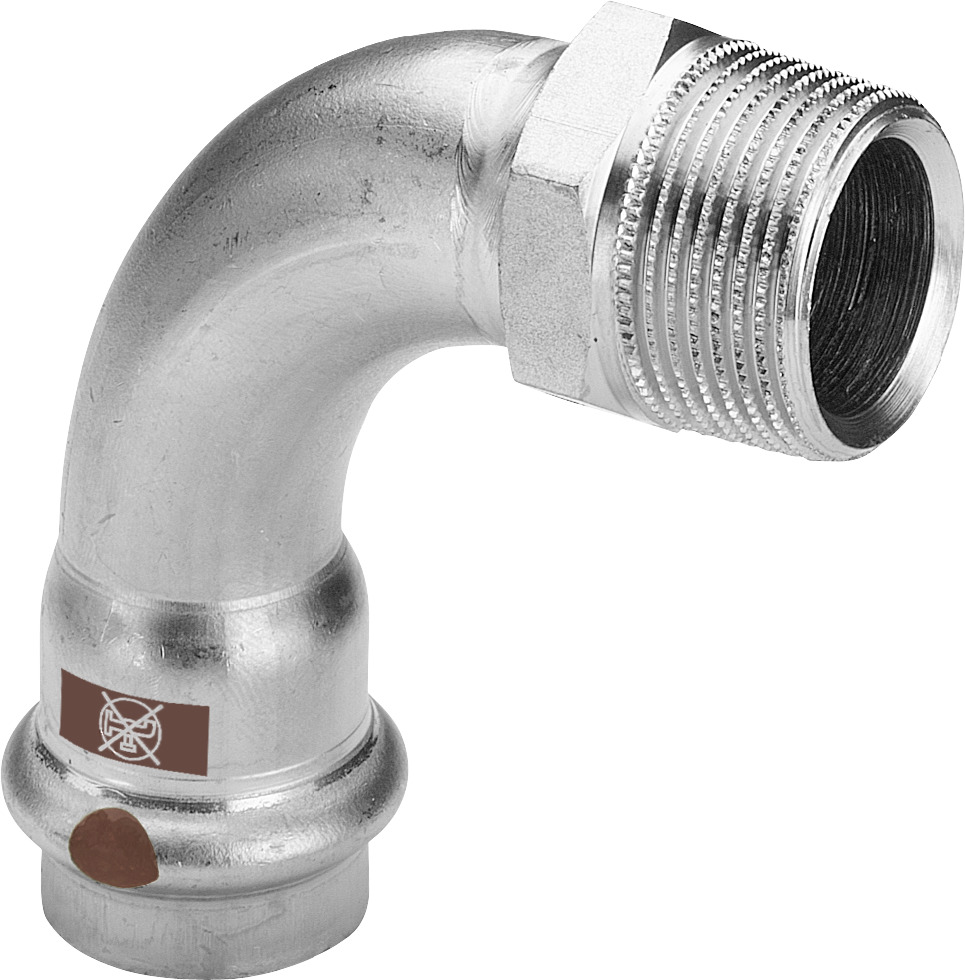

PRESS BEND 90 MT SS 22x3/4 VIEGA
Product code
1272668
V-profile system for heating, industrial, and compressed air systems. Pipes are manufactured from stainless steel 1.4520 and fittings from stainless steel 1.4301. The fittings feature the SC-Contur property, which immediately detects any unpressed connections during pressure testing, preventing hidden leak risks in the building. EPDM O-ring, max. +110°C, pressure class PN16. Not for use with drinking water! This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 304 (1.4301)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 304 (1.4301)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeBend
Model1-part
Bend angle90 °
Bend radius90 mm
Reducingno
Eccentricno
System specificyes
Product codes
SAPCZU405
HPAC1272668
PLC1272668
GTIN/EAN4015211812430
Manufacturer part number812430
Vendor material number812430
Basic information
Package measurements (L x W x H)112 x 38 x 112 mm
Package volume0.477 l
Package weight0.02 kg
Base uniteach
Package units1 / 5 / 5 / 75 / 3500
Package contents–
UNSPSC40172607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1732
GWP, uniteach
Source for GWP dataEPD
