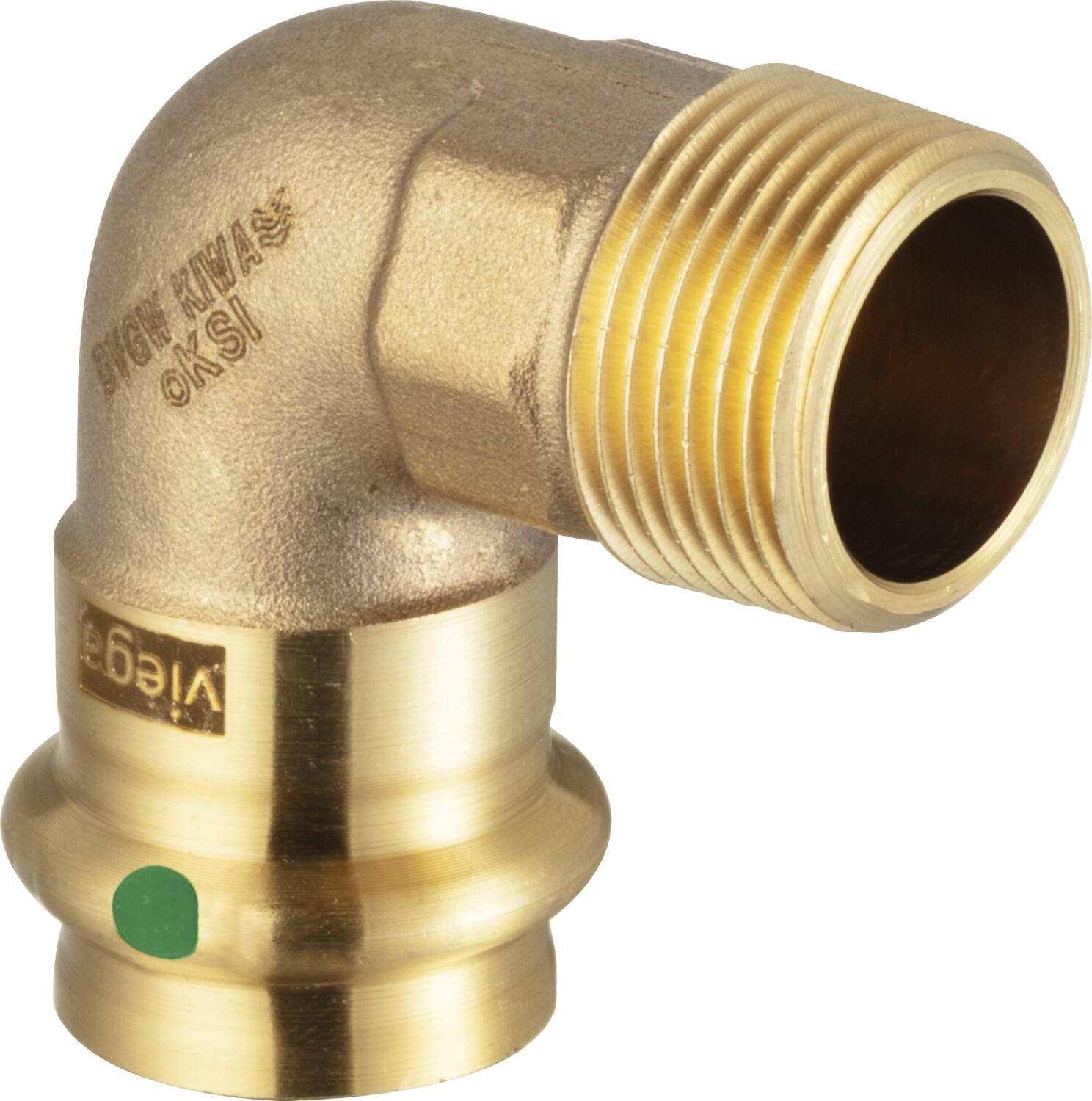

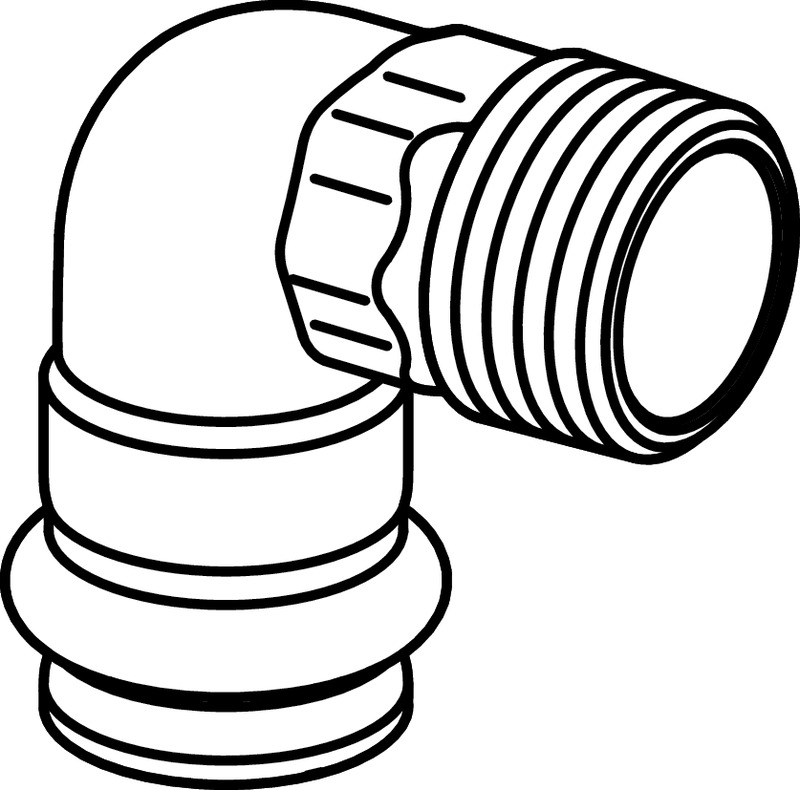

PRESS BEND 90 WITH MT Cu 12x3/8 VIEGA
Product code
1546201
V-profile system for domestic water, heating and cooling systems "compatibility with other systems' O-rings to be verified". Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring EPDM max. +110C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Bronze
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Bronze
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeElbow (fitting)
Model1-part
Bend angle90 °
Reducingyes
Eccentricno
System specificyes
Outer pipe diameter connection 112 mm
Product codes
SAPABS202
HPAC1546201
PLC1546201
GTIN/EAN4015211290863
Manufacturer part number290863
Vendor material number290863
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.136 l
Package weight0.072 kg
Base uniteach
Package units5 / 200
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.7193
GWP, uniteach
Source for GWP dataEPD
