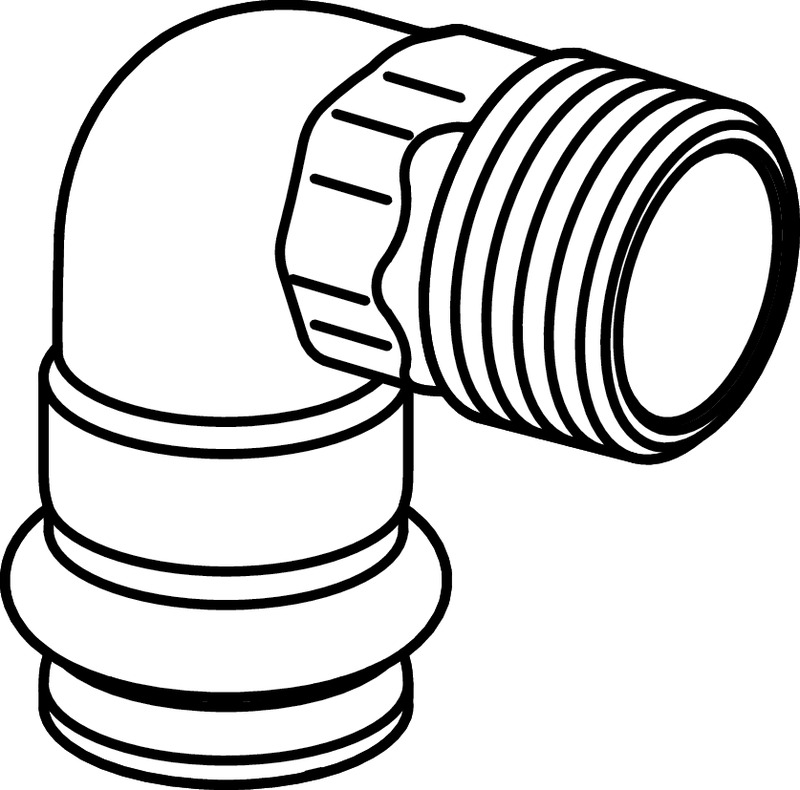

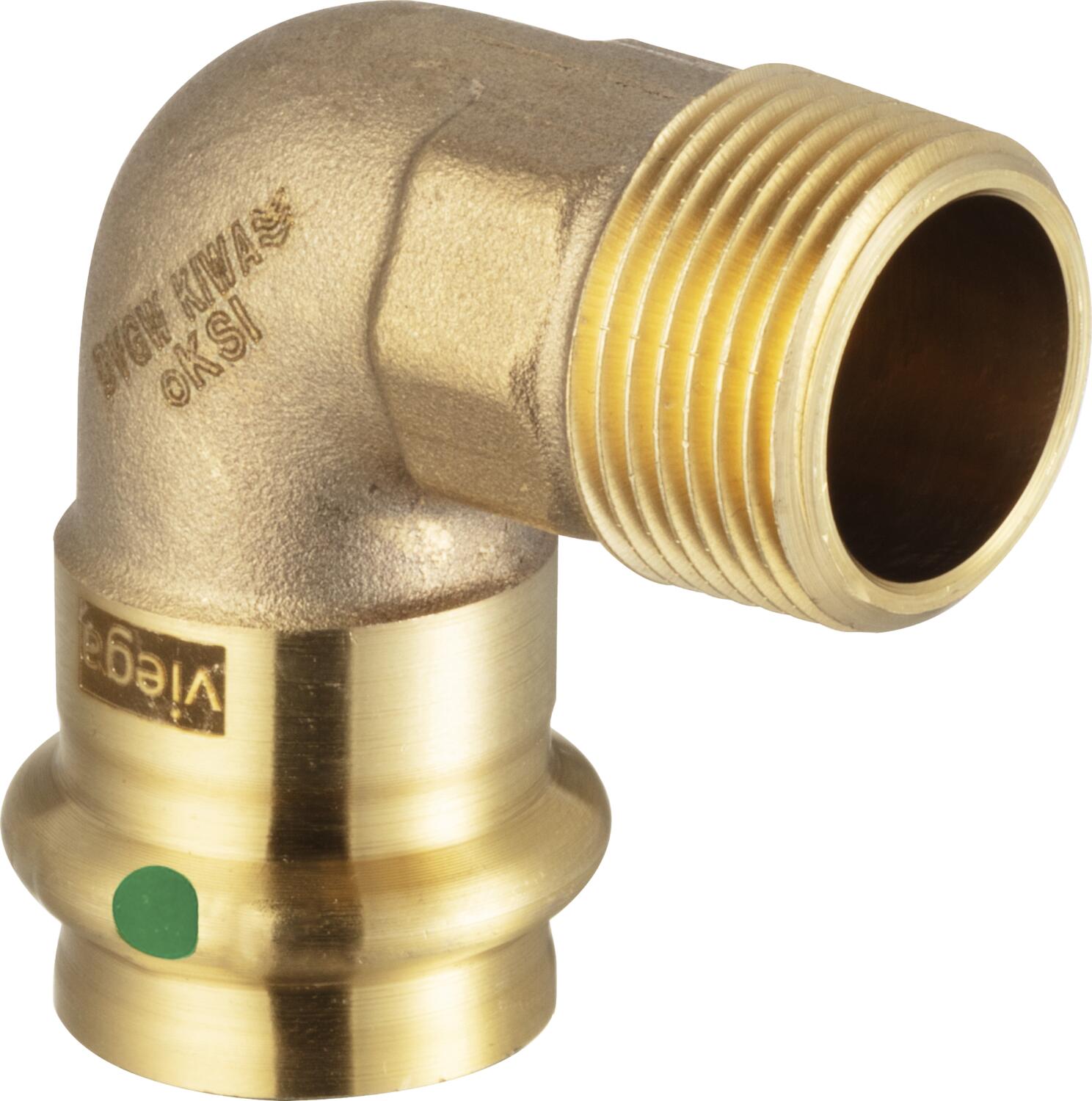

PRESS BEND 90 WITH MT Cu 15x1/2 VIEGA
Product code
1546205
V-profile system for domestic water, heating, and cooling applications; compatibility with other systems' O-rings must be verified. Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring made of EPDM, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Bronze
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Bronze
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeElbow (fitting)
Model1-part
Bend angle90 °
Reducingno
Eccentricno
System specificyes
Outer pipe diameter connection 115 mm
Product codes
SAPABS205
HPAC1546205
PLC1546205
GTIN/EAN4015211112950
Manufacturer part number112950
Vendor material number112950
Basic information
Package measurements (L x W x H)61 x 21 x 32 mm
Package volume0.041 l
Package weight0.068 kg
Base uniteach
Package units5 / 150
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.6793
GWP, uniteach
Source for GWP dataEPD
