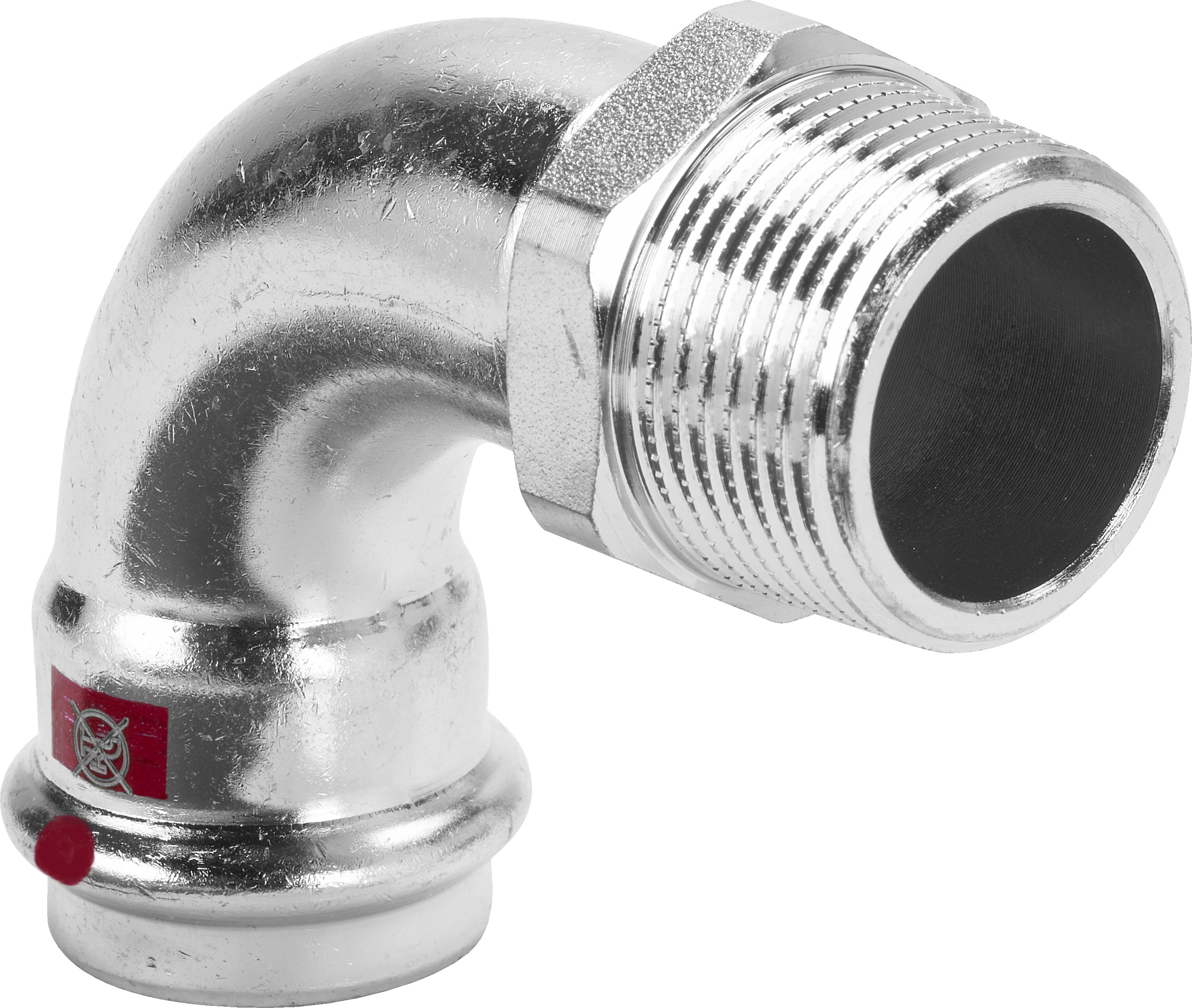

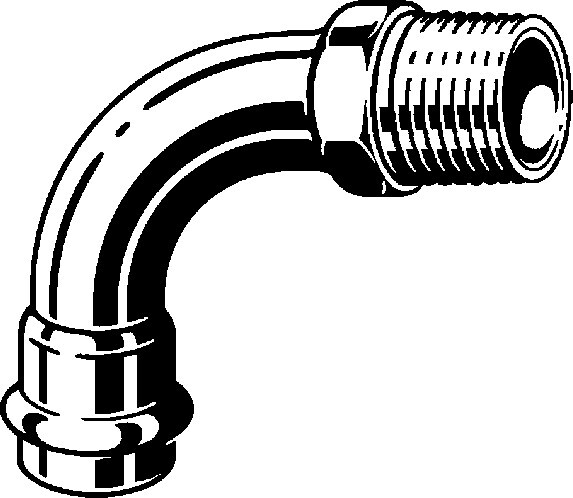

PRESS BEND 90 WITH MT ZN 42x1 1/2 VIEGA
Product code
0481719
V-profile system for industrial and heating equipment use "not suitable for drinking water systems". Fittings feature the SC-Contur property which enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Zinc
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Zinc
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeElbow (fitting)
Model1-part
Bend angle90 °
Bend radius90 mm
Eccentricno
System specificyes
Nominal diameter connection 1Other
Product codes
SAPANB040
HPAC0481719
PLC0481719
GTIN/EAN4015211558468
Manufacturer part number558468
Vendor material number558468
Basic information
Package measurements (L x W x H)119 x 67 x 104 mm
Package volume0.434 l
Package weight0.434 kg
Base uniteach
Package units1 / 15
Package contents–
UNSPSC40172613
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.7993
GWP, uniteach
Source for GWP dataEPD
