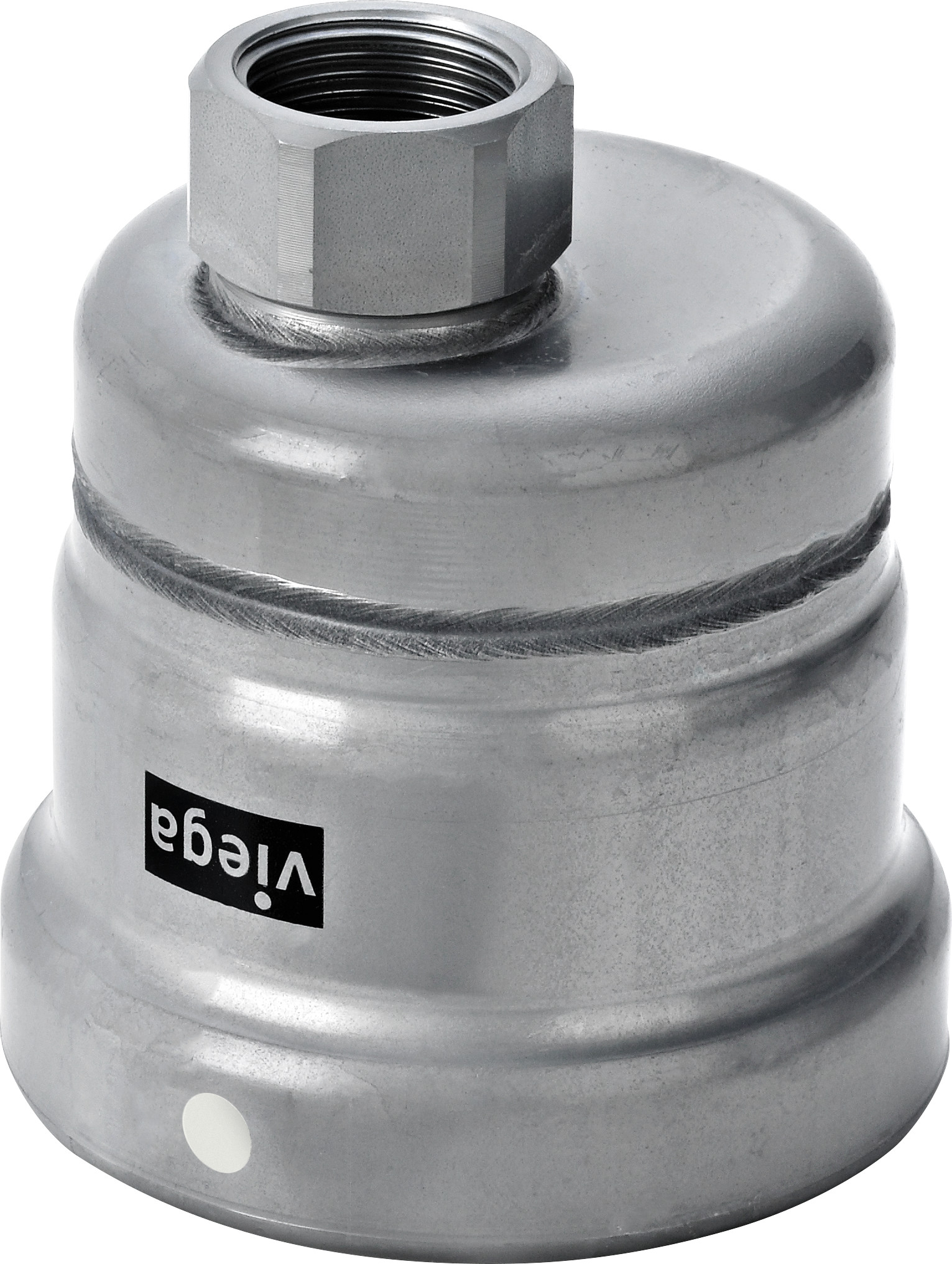

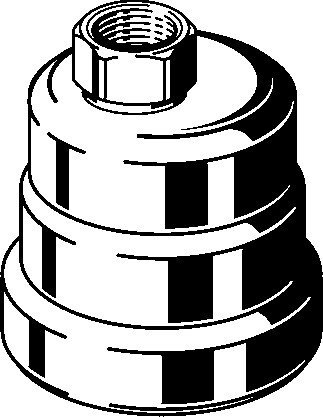

PRESS CLOSING CAP 4256XL DN100x3/4 MEGAPRESS
Product code
0760208
The Megapress system is suitable for installation in heating, cooling, and industrial systems together with steel pipes in accordance with DIN EN 10225 and DIN EN 10220.
Features- Not suitable for use in potable water systems or for flammable gases according to DVGW G260.
- Megapress fittings may only be used together with components belonging to the system.
- Compression fittings have a leak indicator, causing clearly visible leaks if the connection is not compressed.
- Maximum operating temperature and pressure class in water circuits is 110 °C at 16 bar.
Product details
Technical specifications
Product class (ETIM)Fitting with 1 connection (EC003023)
Material connection 1Steel
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Coated
Surface treatment connection 1Untreated
System specificyes
Nominal diameter connection 14 inch (100)
Outer pipe diameter connection 1114.3 mm
Connection 1Press sleeve
Max. operating pressure at 20 °C16 bar
Contour codeV
Material sealingFluorelastomer rubber (FPM/FKM)
Main colour fittingOther
Length of connection 1140.1 mm
Working length connection 143.8 mm
Max. operating pressure at max. medium temperature16 bar
Product codes
SAPCIN648
HPAC0760208
PLC0760208
GTIN/EAN4015211751951
Manufacturer part number751951
Vendor material number751951
Basic information
Package measurements (L x W x H)140.1 x 132 x 132 mm
Package volume2.441 l
Package weight1.285 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172602
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (11)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)27.8845
GWP, uniteach
Source for GWP dataEPD
