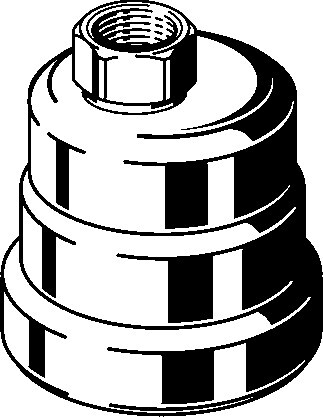

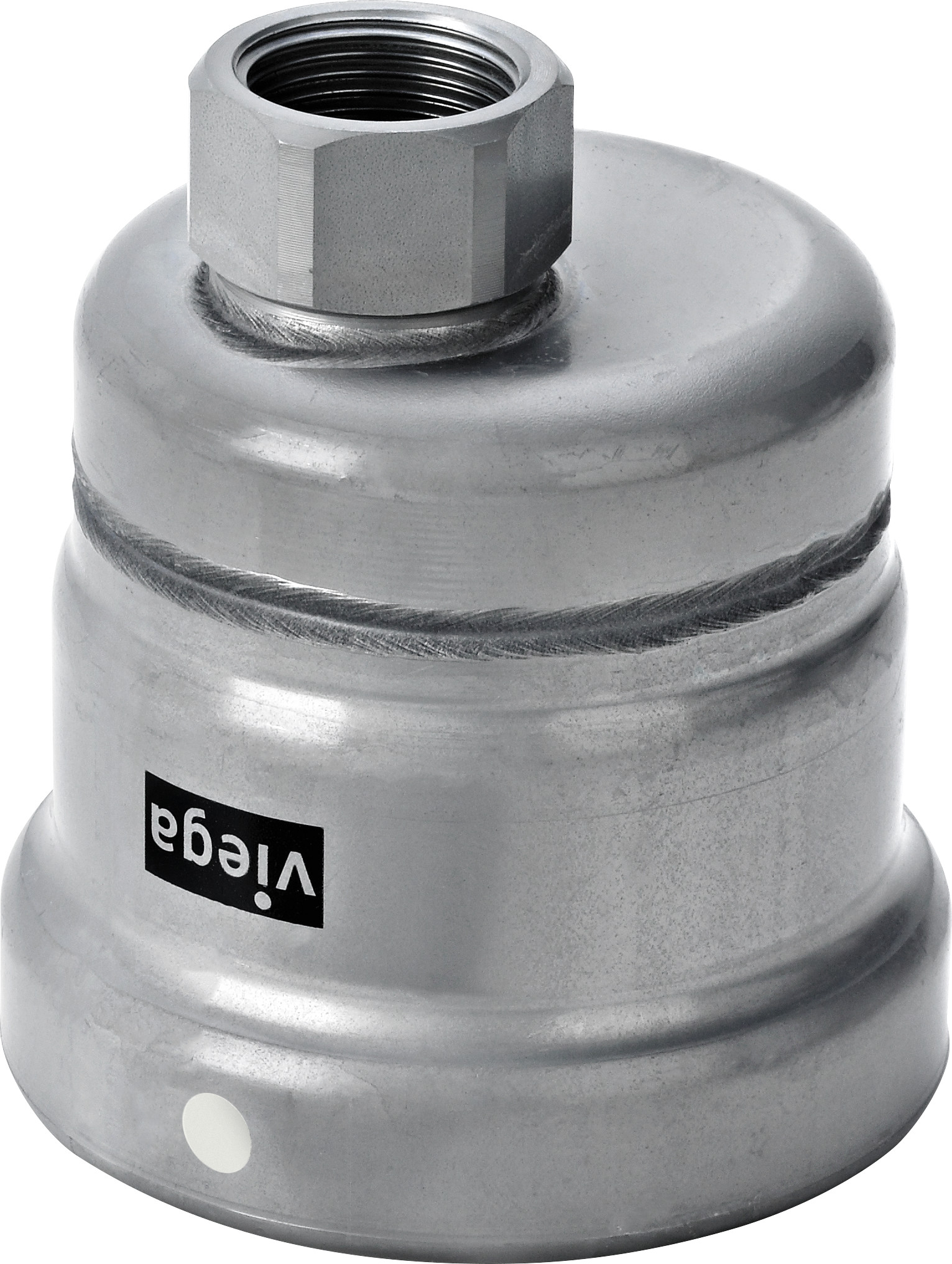

PRESS CLOSING CAP 4256XL DN65x3/4 MEGAPRESS
Product code
0760209
The Megapress system is suitable for installation in heating, cooling, and industrial systems together with steel pipes in accordance with DIN EN 10225 and DIN EN 10220.
Features- Not suitable for use in potable water systems or for flammable gases according to DVGW G260.
- Megapress fittings may only be used together with components belonging to the system.
- Compression fittings have a leak indicator, causing clearly visible leaks if the connection is not compressed.
- Maximum operating temperature and pressure class in water circuits is 110 °C at 16 bar.
Product details
Technical specifications
Product class (ETIM)Fitting with 1 connection (EC003023)
Material connection 1Steel
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Coated
Surface treatment connection 1Untreated
System specificyes
Nominal diameter connection 12 1/2 inch (65)
Outer pipe diameter connection 176.1 mm
Connection 1Press sleeve
Max. operating pressure at 20 °C16 bar
Contour codeV
Material sealingFluorelastomer rubber (FPM/FKM)
Main colour fittingOther
Length of connection 1105.1 mm
Working length connection 143 mm
Max. operating pressure at max. medium temperature16 bar
Product codes
SAPCIN649
HPAC0760209
PLC0760209
GTIN/EAN4015211751920
Manufacturer part number751920
Vendor material number751920
Basic information
Package measurements (L x W x H)105.1 x 93 x 93 mm
Package volume0.909 l
Package weight0.625 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172602
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (11)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)13.5625
GWP, uniteach
Source for GWP dataEPD
