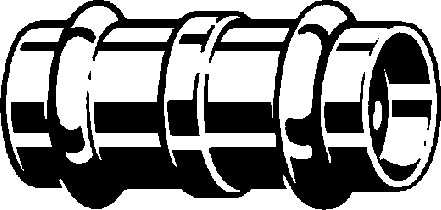

PRESS COUPLING Cu 10 VIEGA
Product code
1547021
V-profile system for domestic water, heating and cooling applications, compatibility with other systems' O-rings to be verified. Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring made of EPDM, maximum temperature +110 °C, pressure class PN16. For 10mm size, use 12mm compression ferrule. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Copper
Material quality connection 1Silicon bronze
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Bronze
Material quality connection 2Silicon bronze
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 110 mm
Connection 1Press sleeve
Product codes
SAPHCG455
HPAC1547021
PLC1547021
GTIN/EAN4015211335946
Manufacturer part number335946
Vendor material number335946
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.001 l
Package weight0.049 kg
Base uniteach
Package units1 / 20 / 200
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
