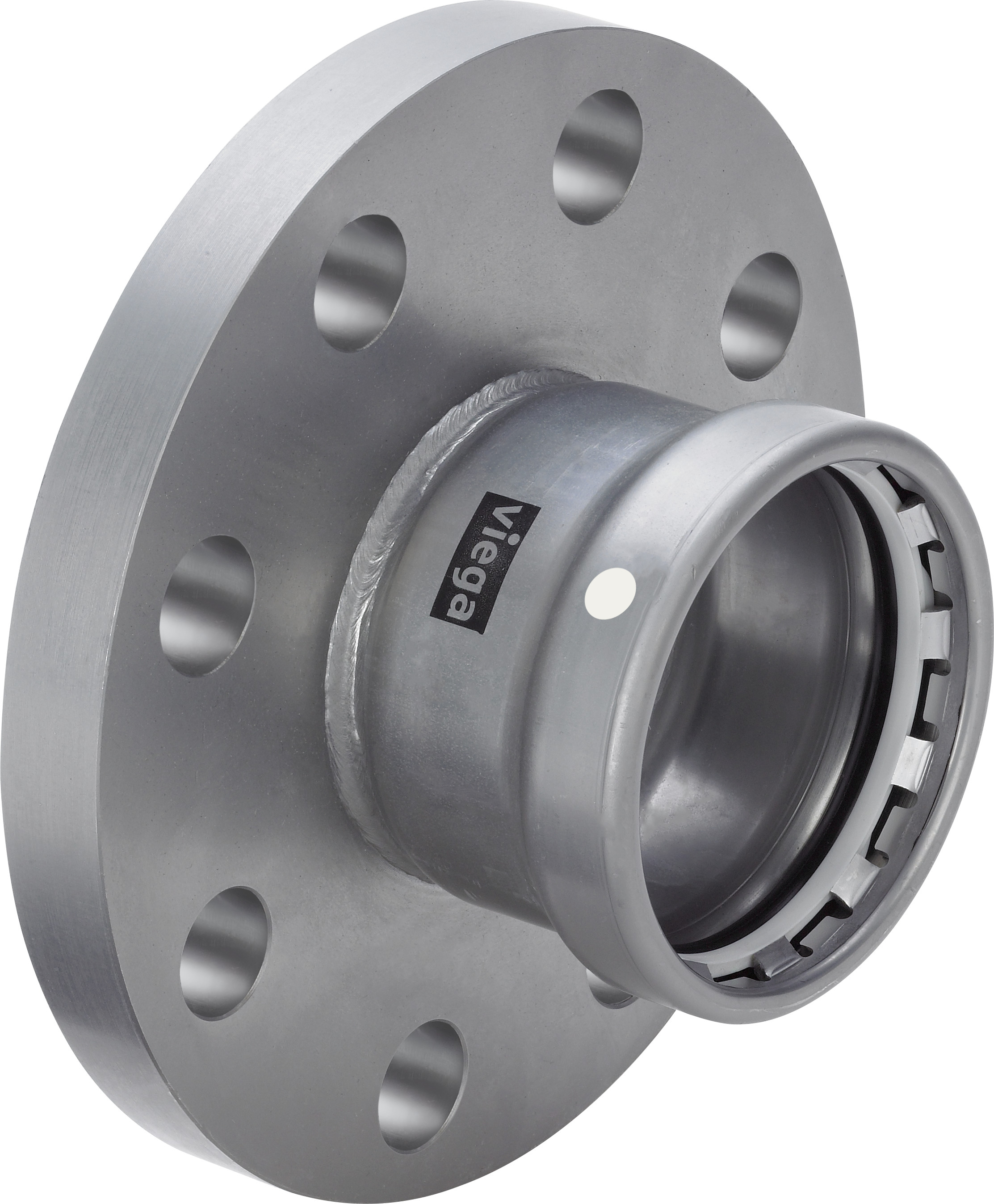

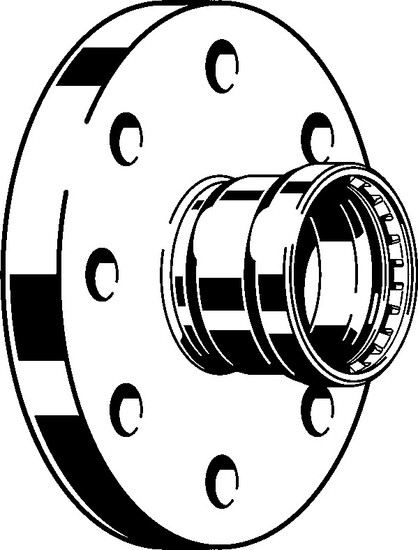

PRESS FLANGE ADAPTER 42596XL 21/2 MEGAPRESS
Product code
0760214
The Megapress system is suitable for installation in heating, cooling, and industrial systems together with steel pipes in accordance with DIN EN 10225 and DIN EN 10220.
Features- Not suitable for use in potable water systems or for flammable gases according to DVGW G260.
- Megapress fittings may only be used together with components belonging to the system.
- Compression fittings have a leak indicator, causing clearly visible leaks if the connection is not compressed.
- Maximum operating temperature and pressure class in water circuits is 110 °C at 16 bar.
Product details
Technical specifications
Product class (ETIM)Fixed flange (EC010338)
MaterialSteel
Flange typeClamping flange
Nominal diameter2 1/2 inch (65)
Outer pipe diameter76.1 mm
Outer diameter of flange185 mm
Flange compression classOther
Thickness flange22 mm
Number of bolt holes8
Diameter bolt hole18 mm
Product codes
SAPCIN674
HPAC0760214
PLC0760214
GTIN/EAN4015211770921
Manufacturer part number770921
Vendor material number770921
Basic information
Package measurements (L x W x H)185 x 86 x 185 mm
Package volume2.943 l
Package weight3.819 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172602
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (10)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)82.8723
GWP, uniteach
Source for GWP dataEPD
