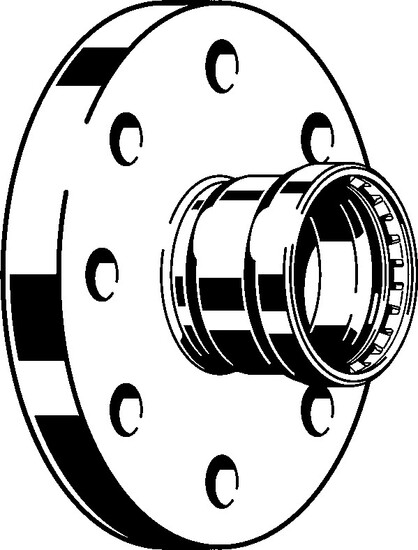

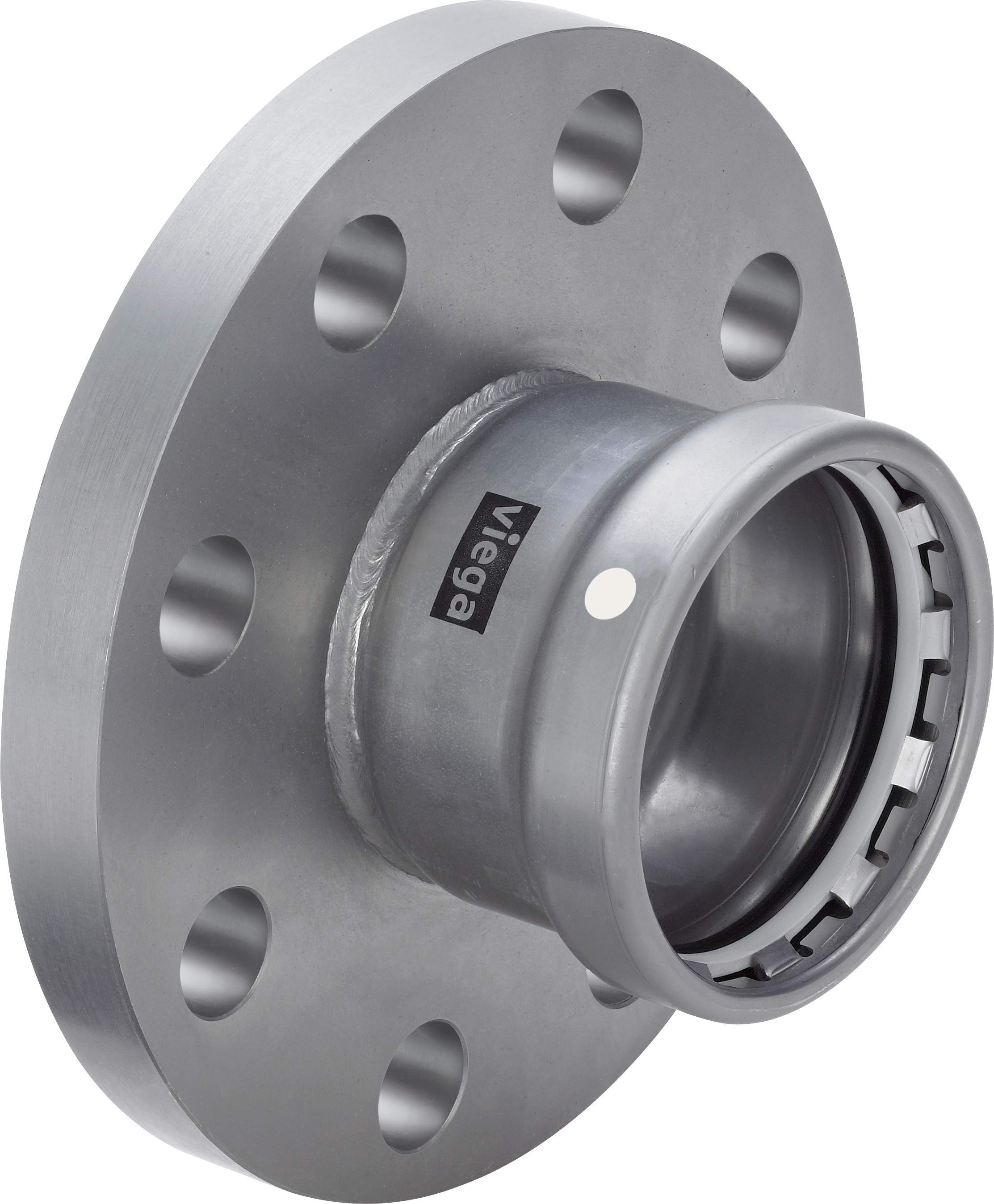

PRESS FLANGE ADAPTER 4259XL DN65 MEGAPRESS
Product code
0760218
The Megapress system is suitable for installation in heating, cooling, and industrial systems together with steel pipes in accordance with DIN EN 10225 and DIN EN 10220.
Features- Not suitable for use in potable water systems or for flammable gases according to DVGW G260.
- Megapress fittings may only be used together with components belonging to the system.
- Compression fittings have a leak indicator, causing clearly visible leaks if the connection is not compressed.
- Maximum operating temperature and pressure class in water circuits is 110 °C at 16 bar.
Product details
Technical specifications
Product class (ETIM)Fixed flange (EC010338)
MaterialSteel
Flange typeClamping flange
Nominal diameter2 1/2 inch (65)
Outer pipe diameter76.1 mm
Outer diameter of flange185 mm
Thickness flange16 mm
Number of bolt holes8
Diameter bolt hole18 mm
Product codes
SAPCIN671
HPAC0760218
PLC0760218
GTIN/EAN4015211751869
Manufacturer part number751869
Vendor material number751869
Basic information
Package measurements (L x W x H)185 x 79.7 x 185 mm
Package volume2.728 l
Package weight3.148 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172602
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (10)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)68.3116
GWP, uniteach
Source for GWP dataEPD
