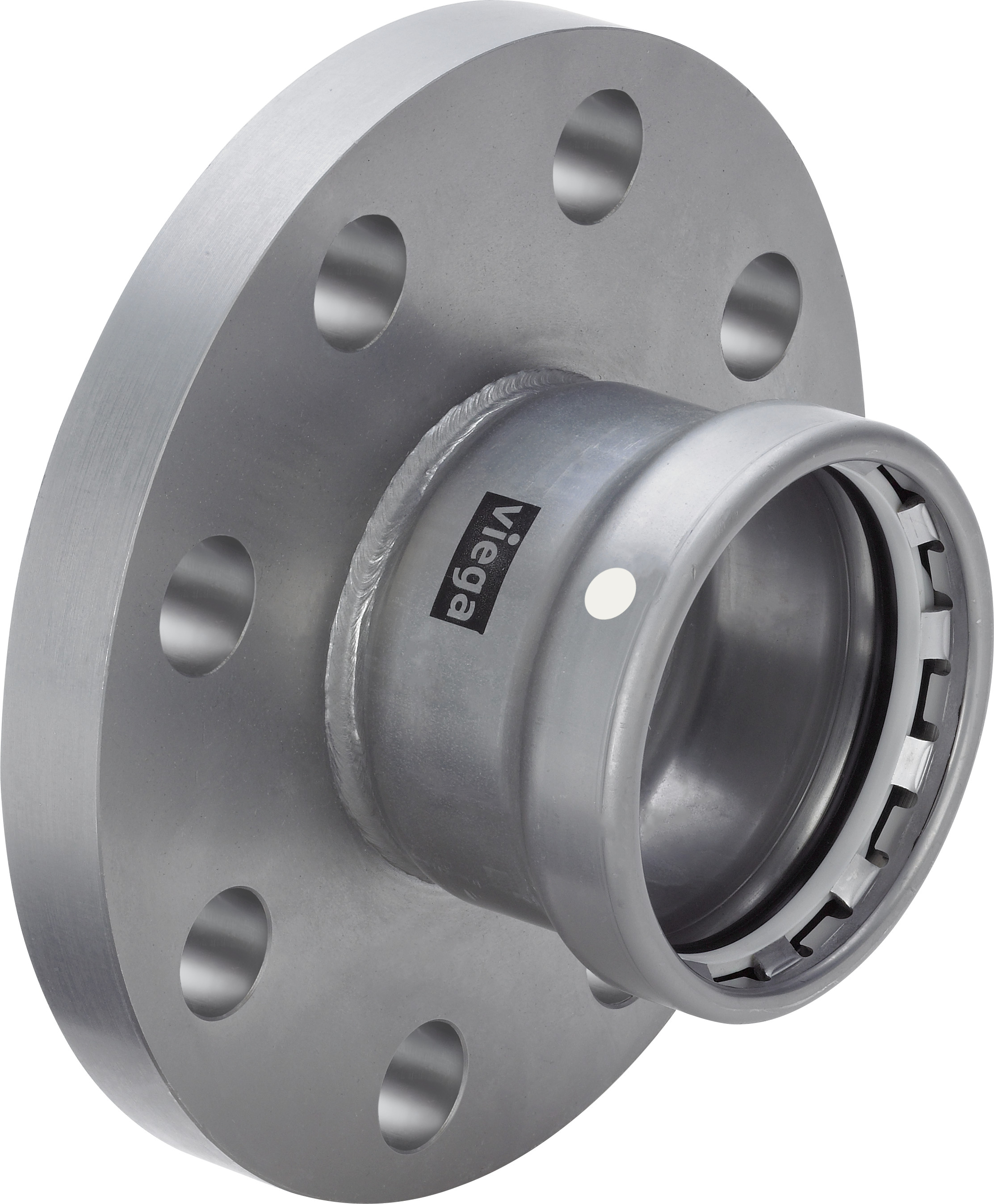

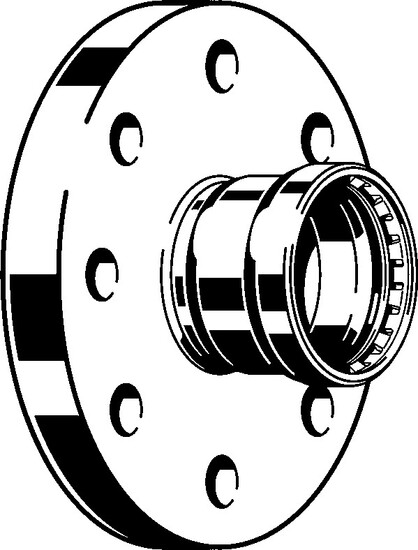

PRESS FLANGE ADAPTER 4259XL DN80 MEGAPRESS
Product code
0760219
The Megapress system is suitable for installation in heating, cooling, and industrial systems together with steel pipes in accordance with DIN EN 10225 and DIN EN 10220.
Features- Not suitable for use in potable water systems or for flammable gases according to DVGW G260.
- Megapress fittings may only be used together with components belonging to the system.
- Compression fittings have a leak indicator, causing clearly visible leaks if the connection is not compressed.
- Maximum operating temperature and pressure class in water circuits is 110 °C at 16 bar.
Product details
Technical specifications
Product class (ETIM)Fixed flange (EC010338)
MaterialSteel
Flange typeClamping flange
Nominal diameter3 inch (80)
Outer pipe diameter88.9 mm
Outer diameter of flange200 mm
Thickness flange18 mm
Number of bolt holes8
Diameter bolt hole18 mm
Product codes
SAPCIN672
HPAC0760219
PLC0760219
GTIN/EAN4015211751876
Manufacturer part number751876
Vendor material number751876
Basic information
Package measurements (L x W x H)200 x 95.5 x 200 mm
Package volume3.82 l
Package weight4.1 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172602
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (10)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)88.97
GWP, uniteach
Source for GWP dataEPD
