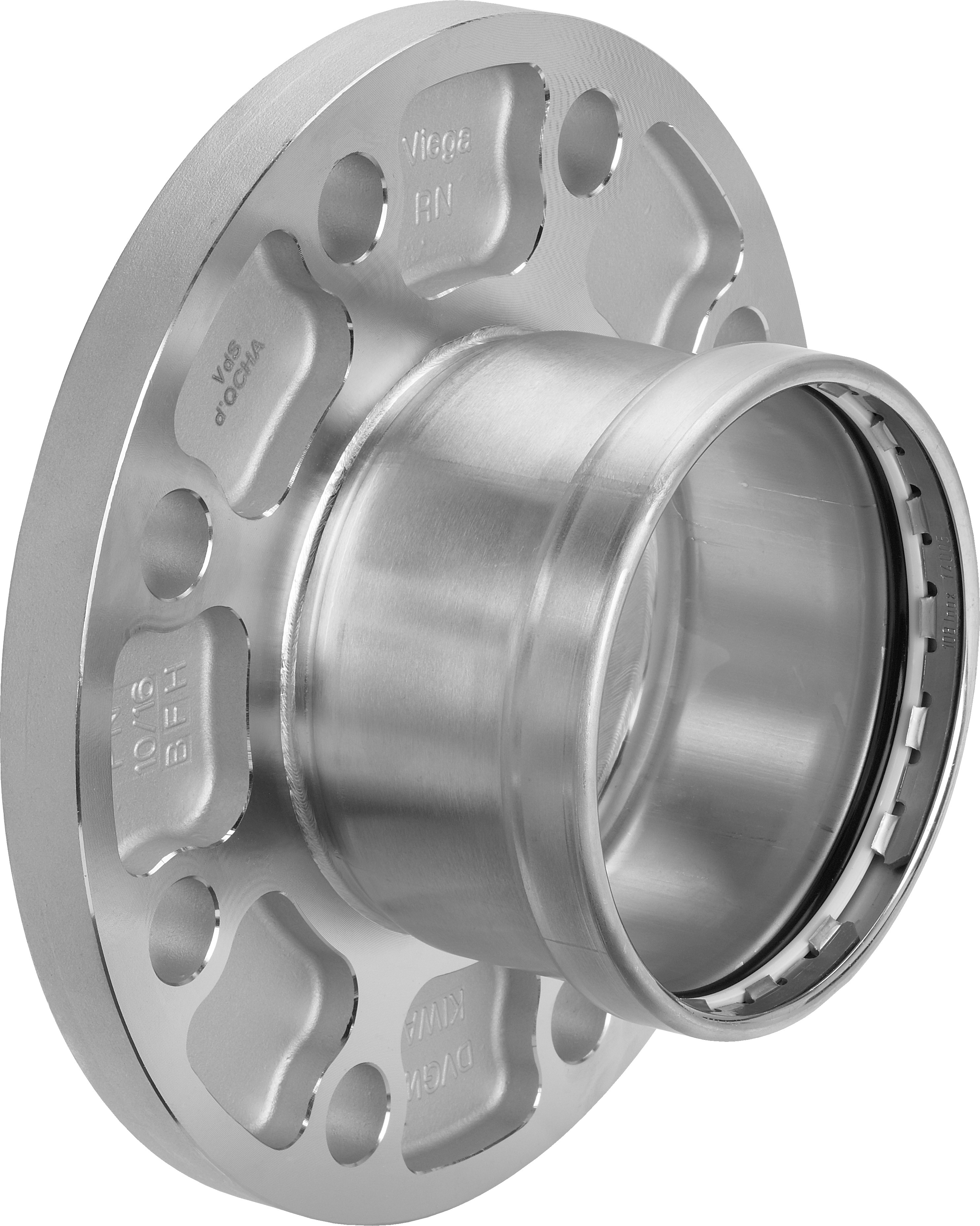

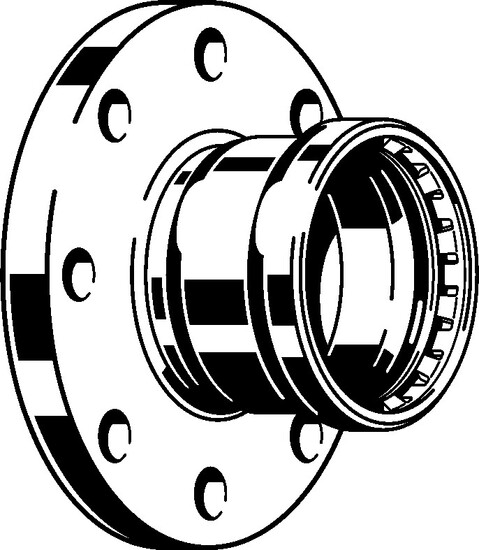

PRESS FLANGE ADAPTER SS DN50 64mm VIEGA
Product code
1284159
V-profile system for domestic water and industrial applications. Fittings feature the SC-Contur property, which enables detection of leaks in a non-pressurized connection during a pressure test. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fixed flange (EC010338)
MaterialStainless steel
Material qualityStainless steel 316 (1.4401)
Flange typeClamping flange
Nominal diameter2 inch (50)
Outer pipe diameter64 mm
Outer diameter of flange165 mm
Thickness flange15 mm
Working length connection 231 mm
Number of bolt holes8
Diameter bolt hole18 mm
Product codes
SAPCBI304
HPAC1284159
PLC1284159
GTIN/EAN4015211616809
Manufacturer part number616809
Vendor material number616809
Basic information
Package measurements (L x W x H)210 x 210 x 120 mm
Package volume5.292 l
Package weight2.65 kg
Base uniteach
Package units1 / 99
Package contents–
UNSPSC40172507
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)41.075
GWP, uniteach
Source for GWP dataEPD
