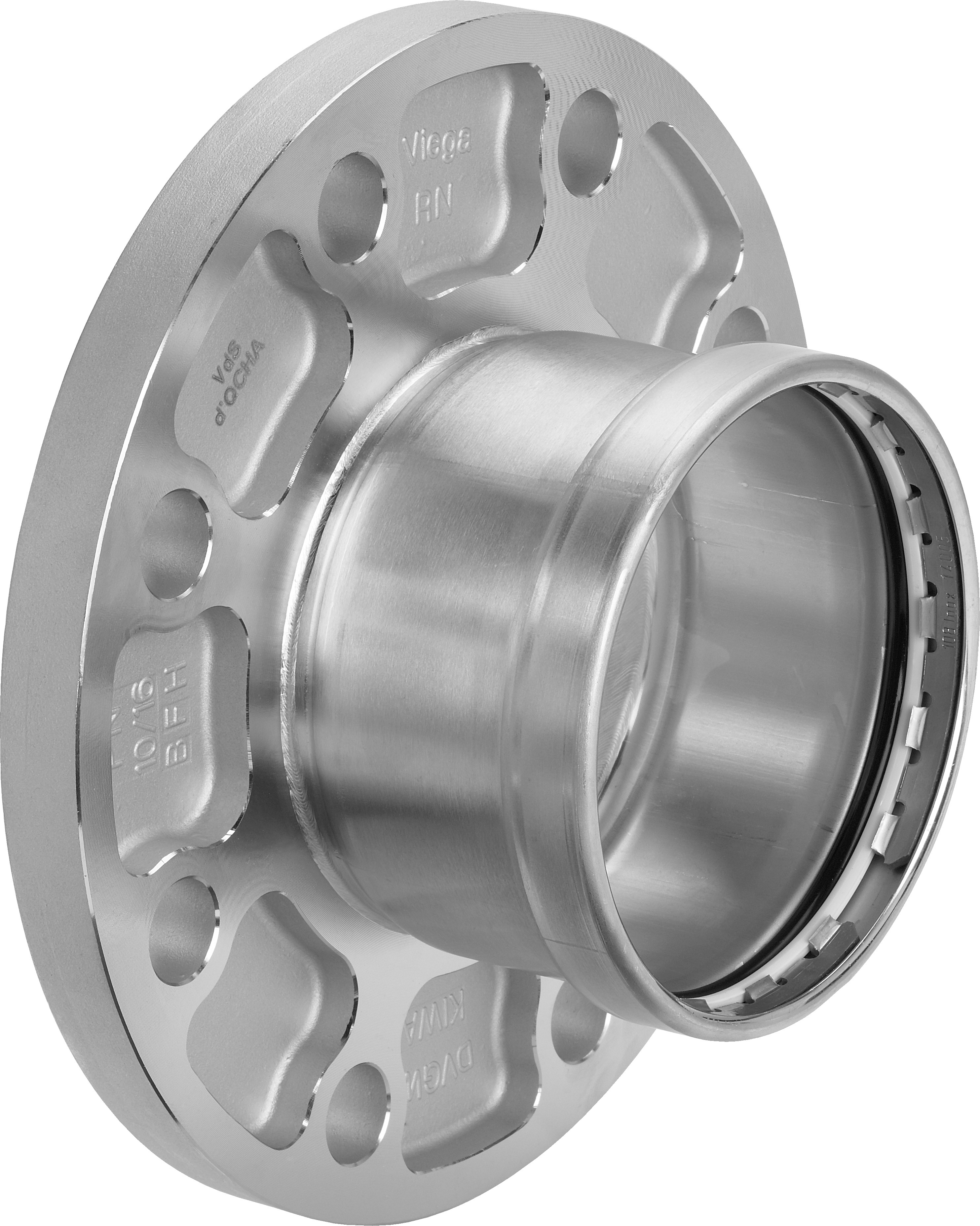

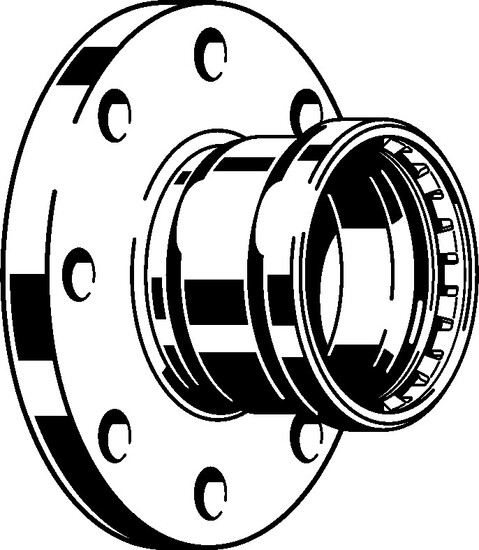

PRESS FLANGE ADAPTER SS DN80 88,9mm VIEGA
Product code
1284162
V-profile system for domestic water and industrial applications. Fittings feature the SC-Contur property, which enables detection of leaks in a non-pressurized connection during a pressure test. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fixed flange (EC010338)
MaterialStainless steel
Material qualityStainless steel 316 (1.4401)
Flange typeClamping flange
Nominal diameter3 inch (80)
Outer pipe diameter88.9 mm
Outer diameter of flange200 mm
Flange compression classOther
Thickness flange17 mm
Working length connection 232 mm
Number of bolt holes8
Diameter bolt hole18 mm
Product codes
SAPCBI420
HPAC1284162
PLC1284162
GTIN/EAN4015211482985
Manufacturer part number482985
Vendor material number482985
Basic information
Package measurements (L x W x H)240 x 240 x 130 mm
Package volume7.488 l
Package weight3.89 kg
Base uniteach
Package units1 / 99
Package contents–
UNSPSC40172507
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)60.295
GWP, uniteach
Source for GWP dataEPD
