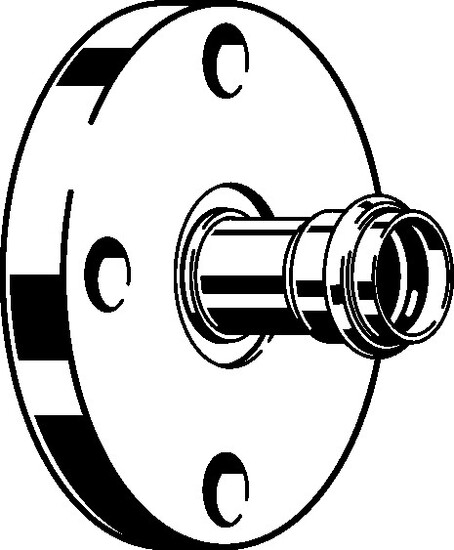

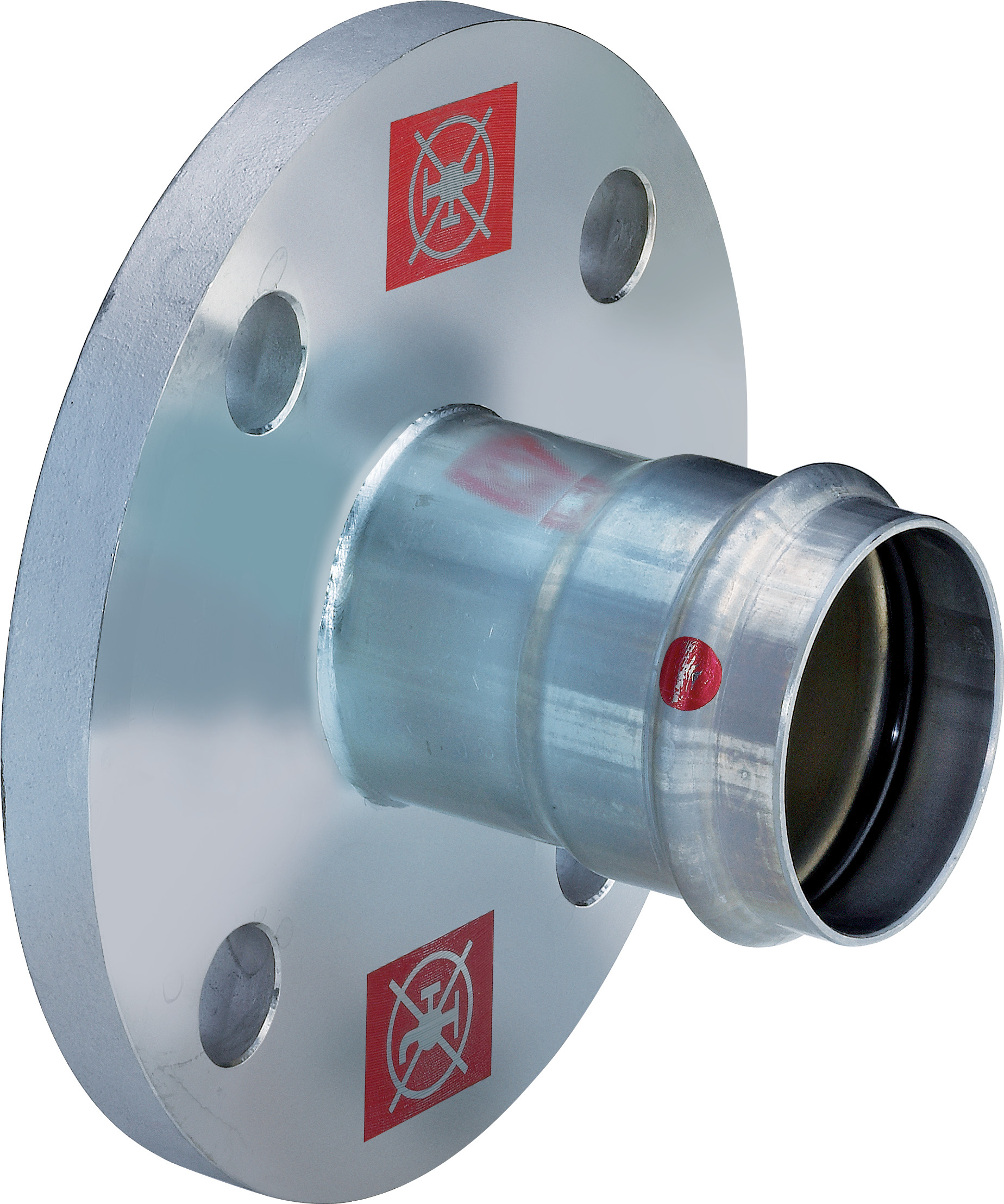

PRESS FLANGE ADAPTER ZN DN32 35mm VIEGA
Product code
0485800
V-profile system for industrial and heating equipment use "not suitable for drinking water systems". Fittings feature the SC-Contur property which enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fixed flange (EC010338)
MaterialOther
Flange typeClamping flange
Nominal diameter1 1/4 inch (32)
Outer pipe diameter35 mm
Outer diameter of flange140 mm
Thickness flange16 mm
Number of bolt holes4
Diameter bolt hole18 mm
Product codes
SAPANB263
HPAC0485800
PLC0485800
GTIN/EAN4015211643546
Manufacturer part number643546
Vendor material number643546
Basic information
Package measurements (L x W x H)179 x 131 x 106 mm
Package volume1.89 l
Package weight1.89 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172613
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)12.1905
GWP, uniteach
Source for GWP dataEPD
