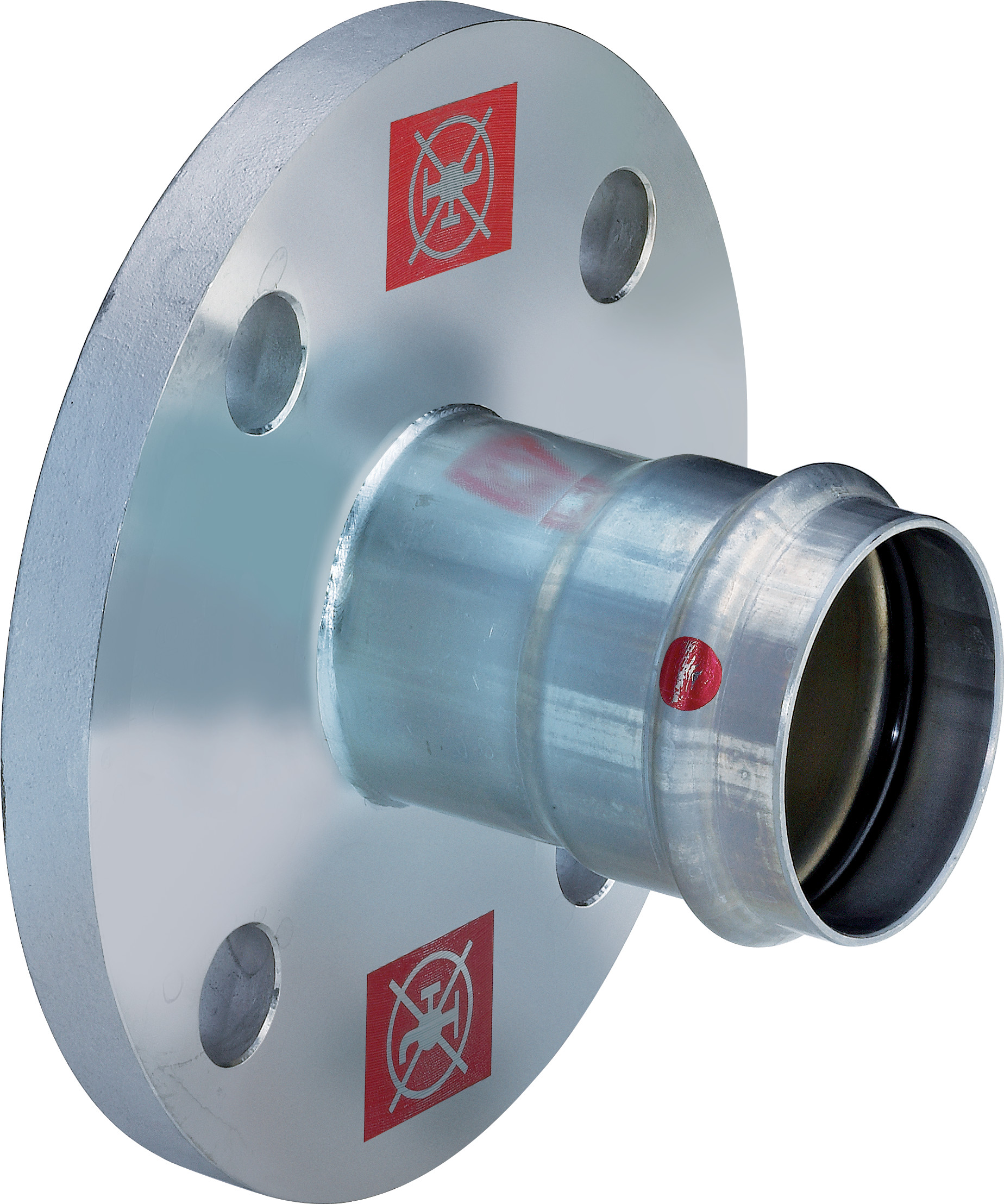

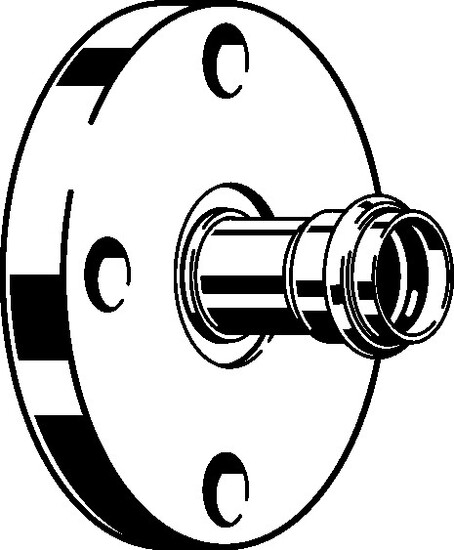

PRESS FLANGE ADAPTER ZN DN40 42mm VIEGA
Product code
0485801
V-profile system for industrial and heating equipment use "not suitable for drinking water systems". Fittings feature the SC-Contur property which enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fixed flange (EC010338)
MaterialOther
Flange typeClamping flange
Nominal diameter1 1/2 inch (40)
Outer pipe diameter42 mm
Outer diameter of flange150 mm
Thickness flange16 mm
Working length connection 256.7 mm
Number of bolt holes4
Diameter bolt hole18 mm
Product codes
SAPANB264
HPAC0485801
PLC0485801
GTIN/EAN4015211643553
Manufacturer part number643553
Vendor material number643553
Basic information
Package measurements (L x W x H)136 x 119 x 128 mm
Package volume2.196 l
Package weight2.196 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172613
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)14.1642
GWP, uniteach
Source for GWP dataEPD
