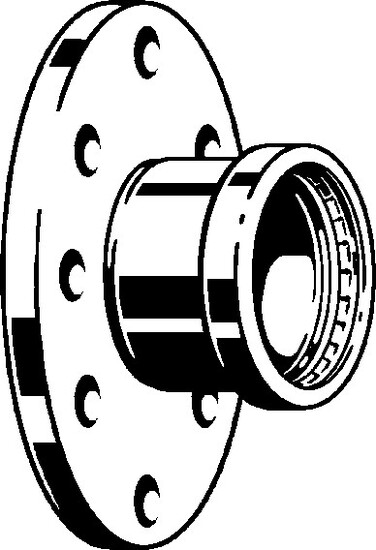

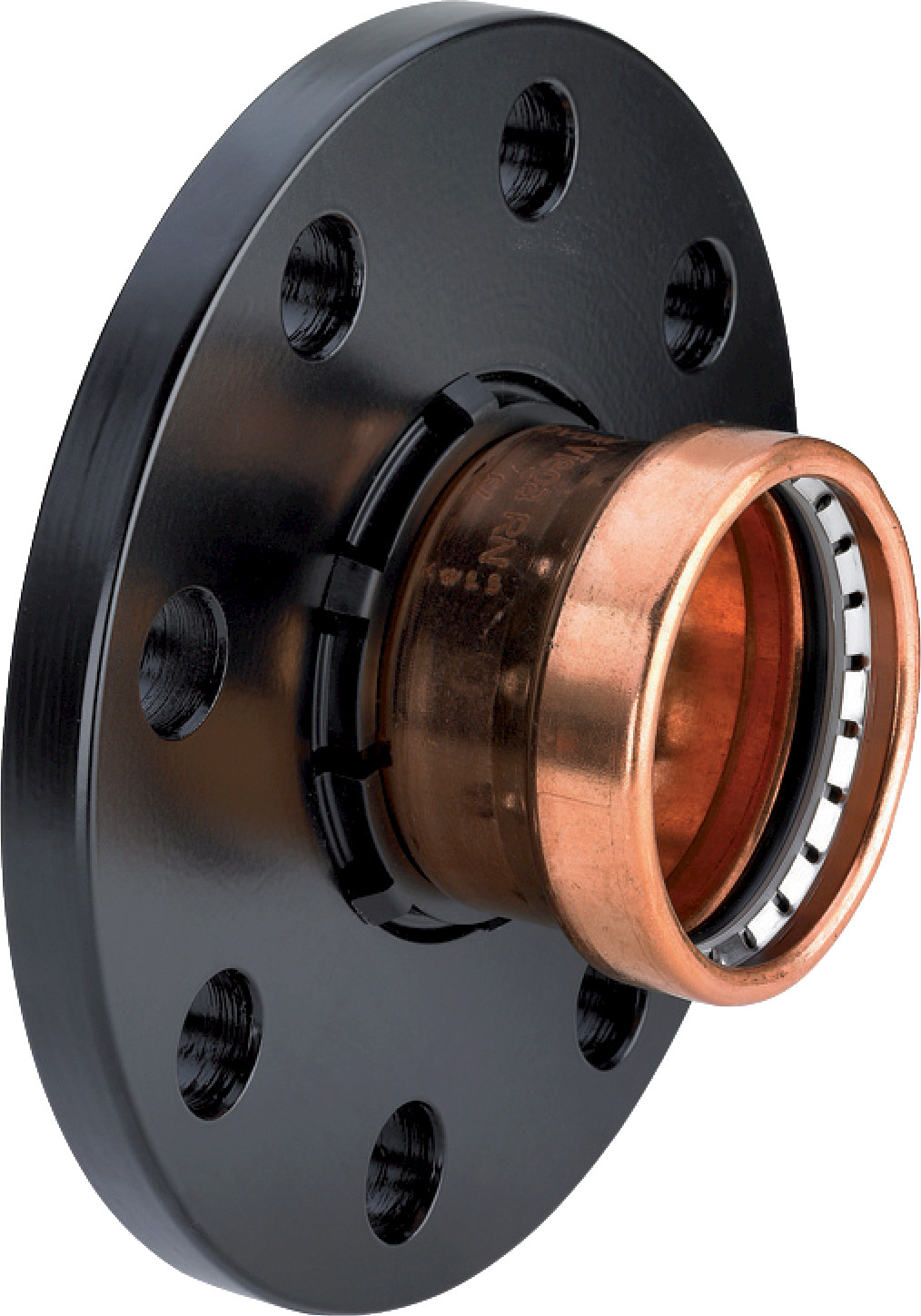

PRESS FLANGE Cu 76,1 (DN65) VIEGA
Product code
1547854
V-profile system for domestic water, heating and cooling systems "compatibility with other systems' O-rings to be verified". Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring EPDM max. +110C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fixed flange (EC010338)
MaterialCopper
Flange typeClamping flange
Nominal diameter2 1/2 inch (65)
Outer pipe diameter76.1 mm
Outer diameter of flange185 mm
Thickness flange16 mm
Number of bolt holes8
Diameter bolt hole18 mm
Product codes
SAPCBW584
HPAC1547854
PLC1547854
GTIN/EAN4015211534042
Manufacturer part number534042
Vendor material number534042
Basic information
Package measurements (L x W x H)79.99 x 79.99 x 185 mm
Package volume1.184 l
Package weight2.817 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)15.409
GWP, uniteach
Source for GWP dataEPD
