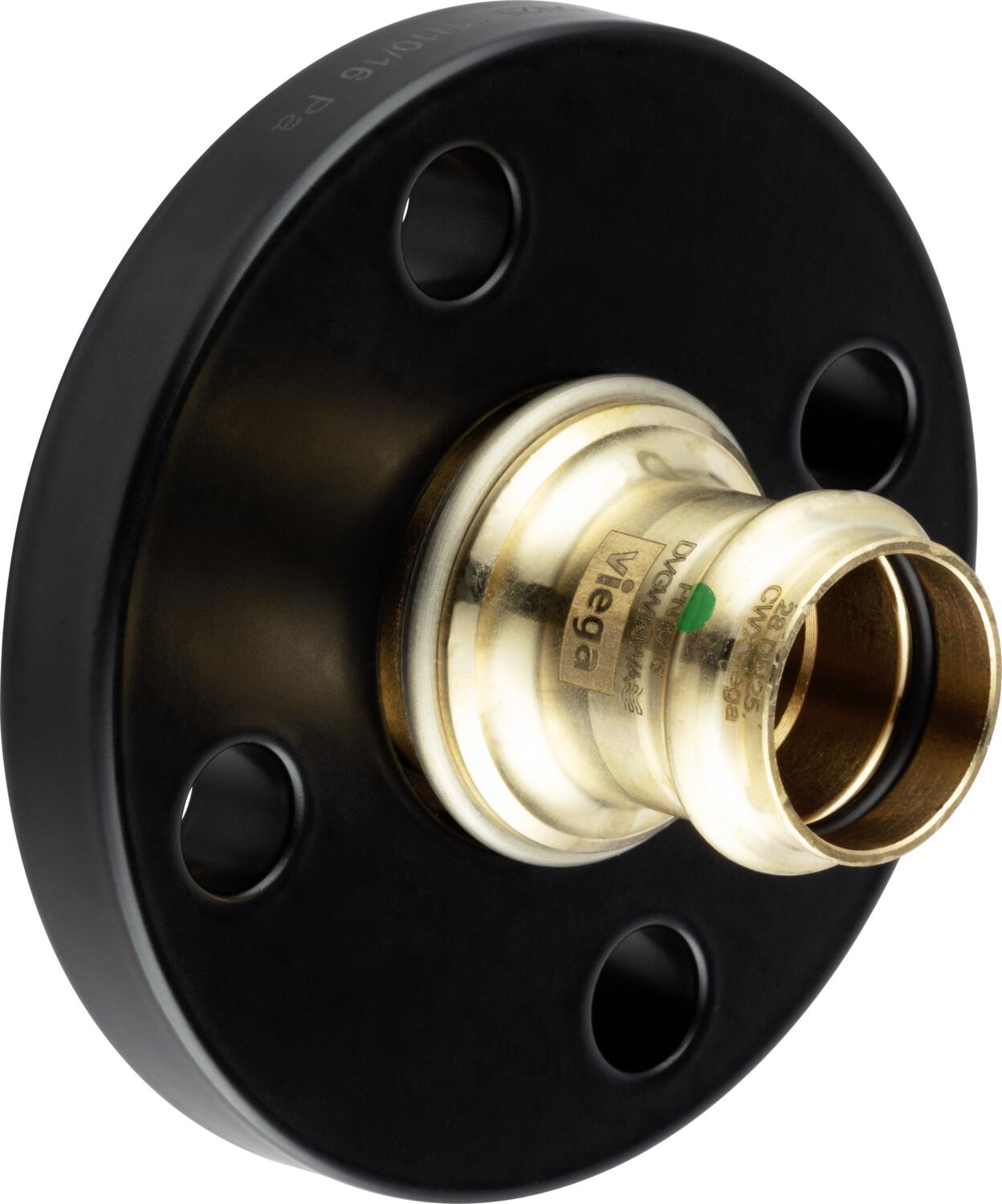

PRESS FLANGE 35 DN32 BRONZE
Product code
1547756
No product description available.
Product details
Technical specifications
Product class (ETIM)Fixed flange (EC010338)
Flange typeClamping flange
Nominal diameter1 1/4 inch (32)
Outer pipe diameter35 mm
Outer diameter of flange140 mm
Flange compression classPN 16
Thickness flange16 mm
Number of bolt holes4
Diameter bolt hole18 mm
Product codes
SAPCFB903
HPAC1547756
PLC1547756
GTIN/EAN4015211479879
Manufacturer part number479879
Vendor material number479879
Basic information
Package measurements (L x W x H)140 x 140 x 70 mm
Package volume1.372 l
Package weight1.97 kg
Base uniteach
Package units1
Package contents–
UNSPSC40173711
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG /MARINE
