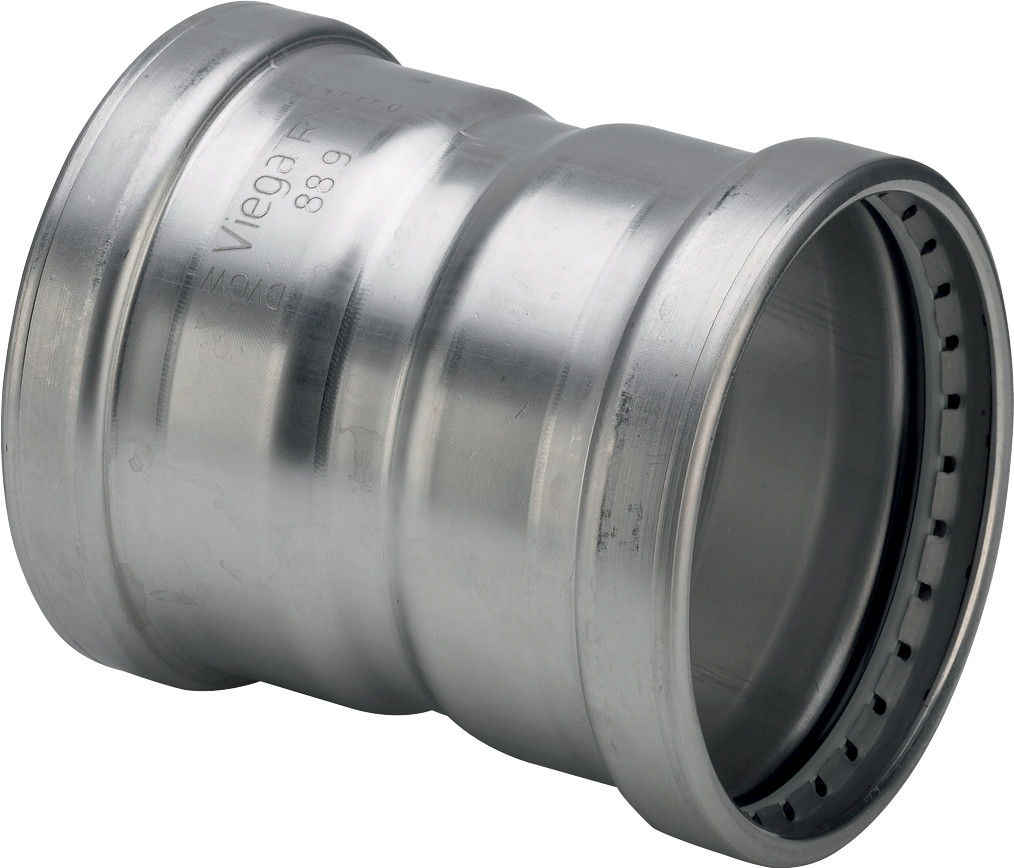

PRESS COUPLING SS 108 VIEGA
Product code
1280090
V-profile system for domestic water and industrial applications. Fittings feature the SC-Contur property, which enables detection of leaks in a non-pressurized connection during a pressure test. EPDM O-ring, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 316 (1.4401)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 316 (1.4401)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Reducingno
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 1108 mm
Product codes
SAPCBI353
HPAC1280090
PLC1280090
GTIN/EAN4015211482824
Manufacturer part number482824
Vendor material number482824
Basic information
Package measurements (L x W x H)145 x 125 x 125 mm
Package volume2.266 l
Package weight0.964 kg
Base uniteach
Package units1 / 4 / 4
Package contents–
UNSPSC40172507
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)14.942
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
