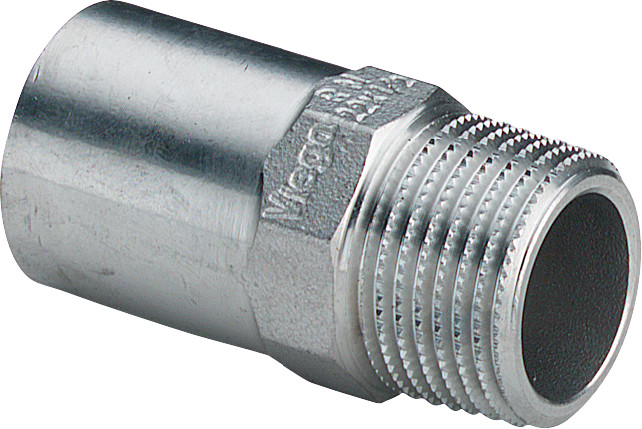

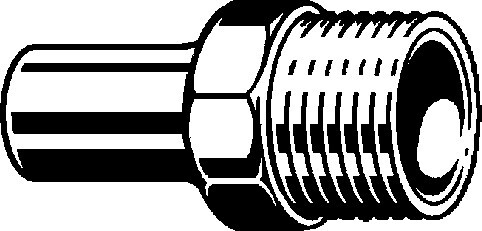

PRESS PLUG PIECE MT SS 22x1/2 VIEGA
Product code
1286614
V-profile system for domestic and industrial water systems, featuring SC-Contur property that enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 316 (1.4401)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 316 (1.4401)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 122 mm
Connection 1Insert (push-fitting)
Product codes
SAPCBI448
HPAC1286614
PLC1286614
GTIN/EAN4015211436735
Manufacturer part number436735
Vendor material number436735
Basic information
Package measurements (L x W x H)64 x 30 x 30 mm
Package volume0.058 l
Package weight0.087 kg
Base uniteach
Package units1 / 5 / 100
Package contents–
UNSPSC40172607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.3485
GWP, uniteach
Source for GWP dataEPD
