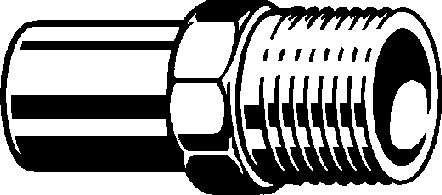

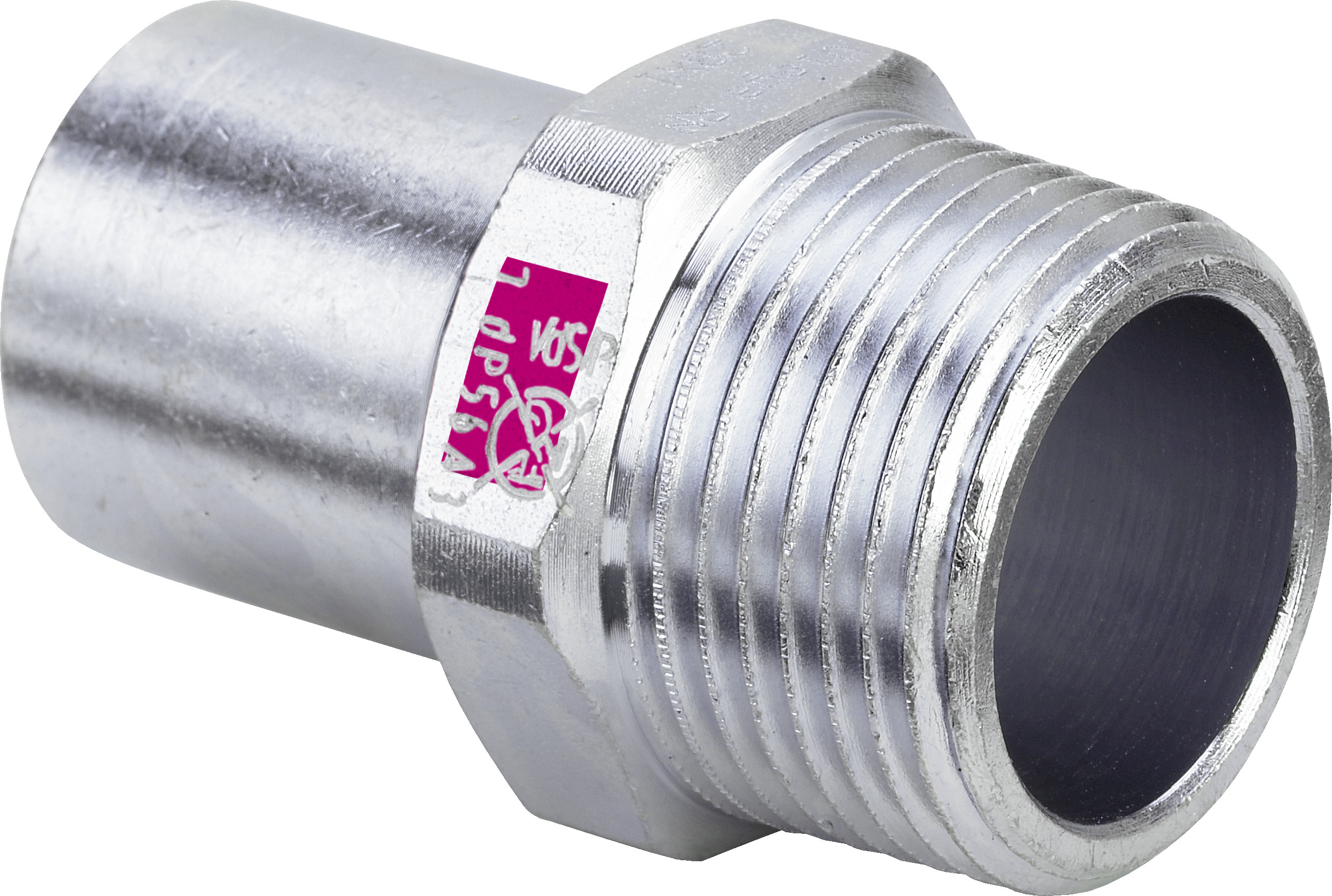

PRESS PLUG PIECE MT ZN 15x1/2 VIEGA
Product code
0482725
V-profile system for industrial and heating equipment use "not suitable for drinking water systems". Fittings feature the SC-Contur property which enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Zinc
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Zinc
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 115 mm
Connection 1Press sleeve
Product codes
SAPANB082
HPAC0482725
PLC0482725
GTIN/EAN4015211642044
Manufacturer part number642044
Vendor material number642044
Basic information
Package measurements (L x W x H)37 x 30 x 45 mm
Package volume0.045 l
Package weight0.045 kg
Base uniteach
Package units5 / 250
Package contents–
UNSPSC40172613
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.2903
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
