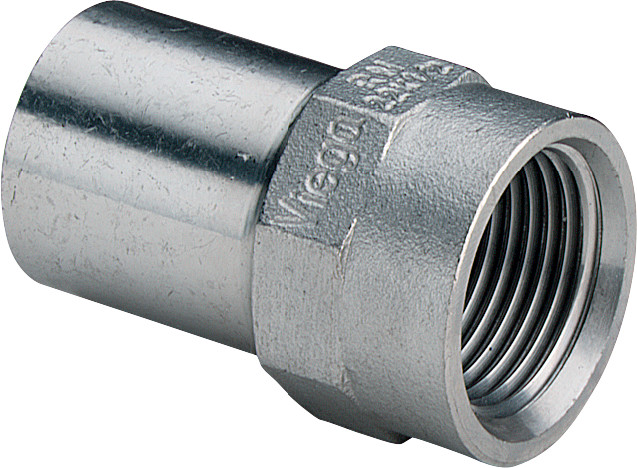

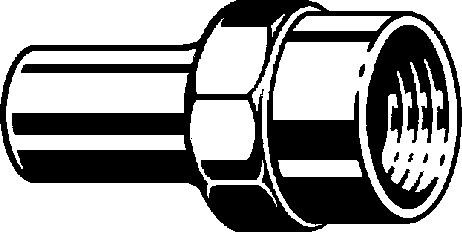

PRESS PLUG WITH FT SS 35x1 1/4 VIEGA
Product code
1286823
V-profile system for domestic and industrial water systems, featuring SC-Contur property that enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 316 (1.4401)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 316 (1.4401)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 135 mm
Connection 1Insert (push-fitting)
Product codes
SAPCBI437
HPAC1286823
PLC1286823
GTIN/EAN4015211436865
Manufacturer part number436865
Vendor material number436865
Basic information
Package measurements (L x W x H)75 x 43 x 43 mm
Package volume0.139 l
Package weight0.076 kg
Base uniteach
Package units1 / 5 / 125
Package contents–
UNSPSC40172607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.178
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
