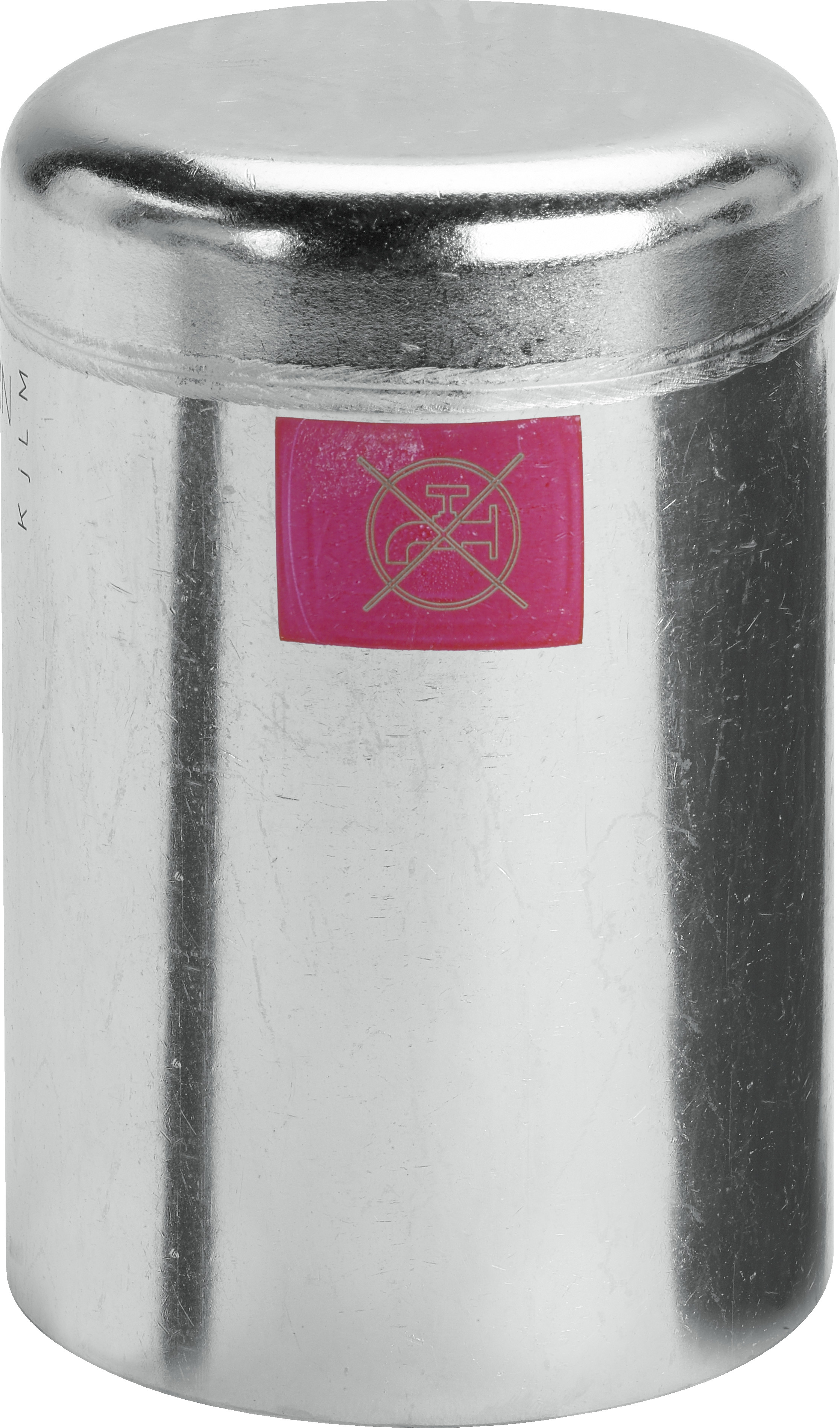

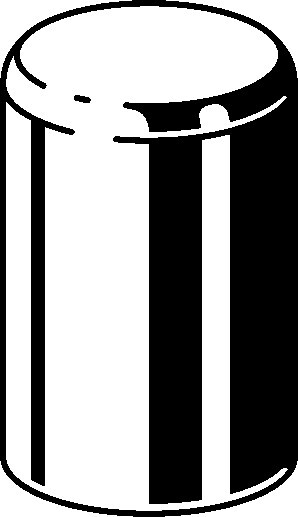

PRESS PLUG ZN 76,1 VIEGA
Product code
0485689
V-profile system for industrial and heating equipment use "not suitable for drinking water systems". Fittings feature the SC-Contur property which enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 1 connection (EC003023)
Material connection 1Zinc
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 176.1 mm
Connection 1Insert (push-fitting)
Max. operating pressure at 20 °C16 bar
Contour codeV
Material sealingOther
Main colour fittingOther
Length of connection 1134.5 mm
Max. operating pressure at max. medium temperature16 bar
Ring stiffness classOther
Product codes
SAPANB248
HPAC0485689
PLC0485689
GTIN/EAN4015211598297
Manufacturer part number598297
Vendor material number598297
Basic information
Package measurements (L x W x H)136 x 119 x 128 mm
Package volume0.569 l
Package weight0.569 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC40172613
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.67
GWP, uniteach
Source for GWP dataEPD
