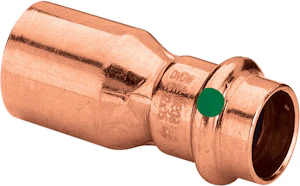

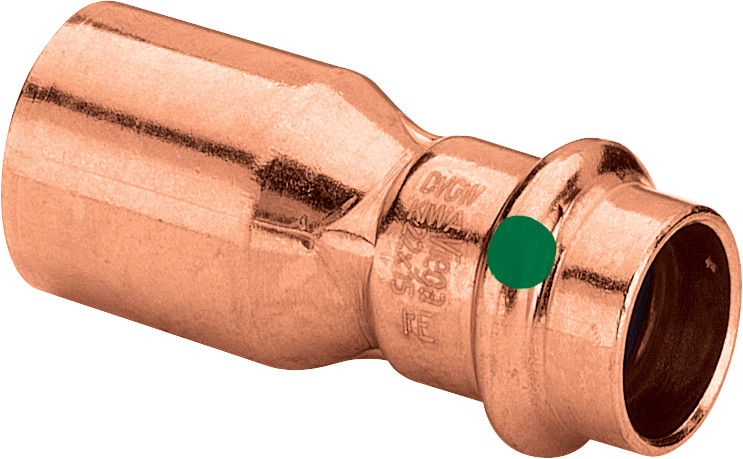

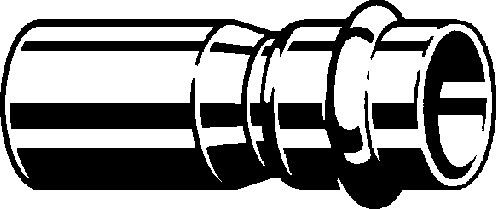

PRESS REDUCER M/F Cu 35x22 VIEGA
Product code
1547213
No product description available.
Product details
Technical specifications
Material connection 1Copper
Material connection 2Copper
ShapeStraight
Model1-part
Reducingtrue
System-specifictrue
Nominal diameter connection 135 mm
Outer pipe diameter connection 135 mm
Connection 1Insert (push-fitting)
Nominal diameter connection 222 mm
Outer pipe diameter connection 222 mm
Connection 2Press sleeve
Material sealingEthylene-propylene diene monomer rubber (EPDM)
Length69 mm
Working length connection 146 mm
Product codes
SAPABS162
HPAC1547213
PLC1547213
GTIN/EAN4015211296452
Manufacturer part number296452
Vendor material number296452
Basic information
Package measurements (L x W x H)72 x 35 x 35 mm
Package volume0.088 l
Package weight0.09 kg
Base uniteach
Package units1 / 5 / 75
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
