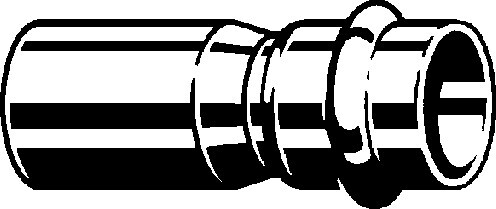

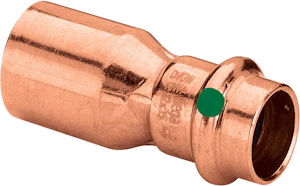

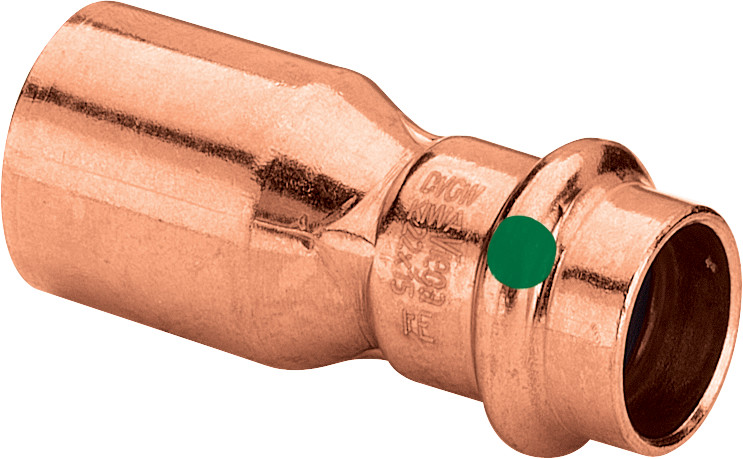

PRESS REDUCER M/F Cu 42x22 VIEGA
Product code
1547216
V-profile system for domestic water, heating, and cooling applications; compatibility with other systems' O-rings must be verified. Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring made of EPDM, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Copper
Material quality connection 1Cu-DHP (CW024A)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Copper
Material quality connection 2Cu-DHP (CW024A)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Reducingyes
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 142 mm
Product codes
SAPABS164
HPAC1547216
PLC1547216
GTIN/EAN4015211296445
Manufacturer part number296445
Vendor material number296445
Basic information
Package measurements (L x W x H)93 x 42 x 42 mm
Package volume0.164 l
Package weight0.128 kg
Base uniteach
Package units1 / 5 / 50
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (9)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.7002
GWP, uniteach
Source for GWP dataEPD
