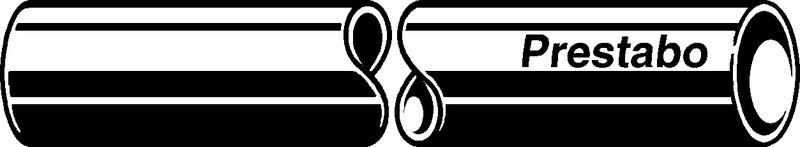

PRESS STEELPIPE ZN 88,9x2,0x6000 VIEGA
Product code
0478410
V-profile system for industrial and heating equipment applications "not suitable for drinking water systems". Pipe made of untreated steel, zinc-coated on the outside. Fittings include the SC-Contur feature, which allows leakage of a non-compressed connection to be detected during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Thin-walled steel pipe (EC010032)
MaterialSteel
Seamlessno
Outer pipe diameter88.9 mm
Wall thickness2 mm
Surface protectionGalvanic/electrolytic zinc plated
Product codes
SAPANA939
HPAC0478410
PLC0478410
GTIN/EAN4015211598341
Manufacturer part number598341
Vendor material number598341
Basic information
Package measurements (L x W x H)1000 x 89 x 89 mm
Package volume7.921 l
Package weight4.35 kg
Base unitMeter
Package units6 / 30
Package contents–
UNSPSC40141911
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)22.956
GWP, unitMeter
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
