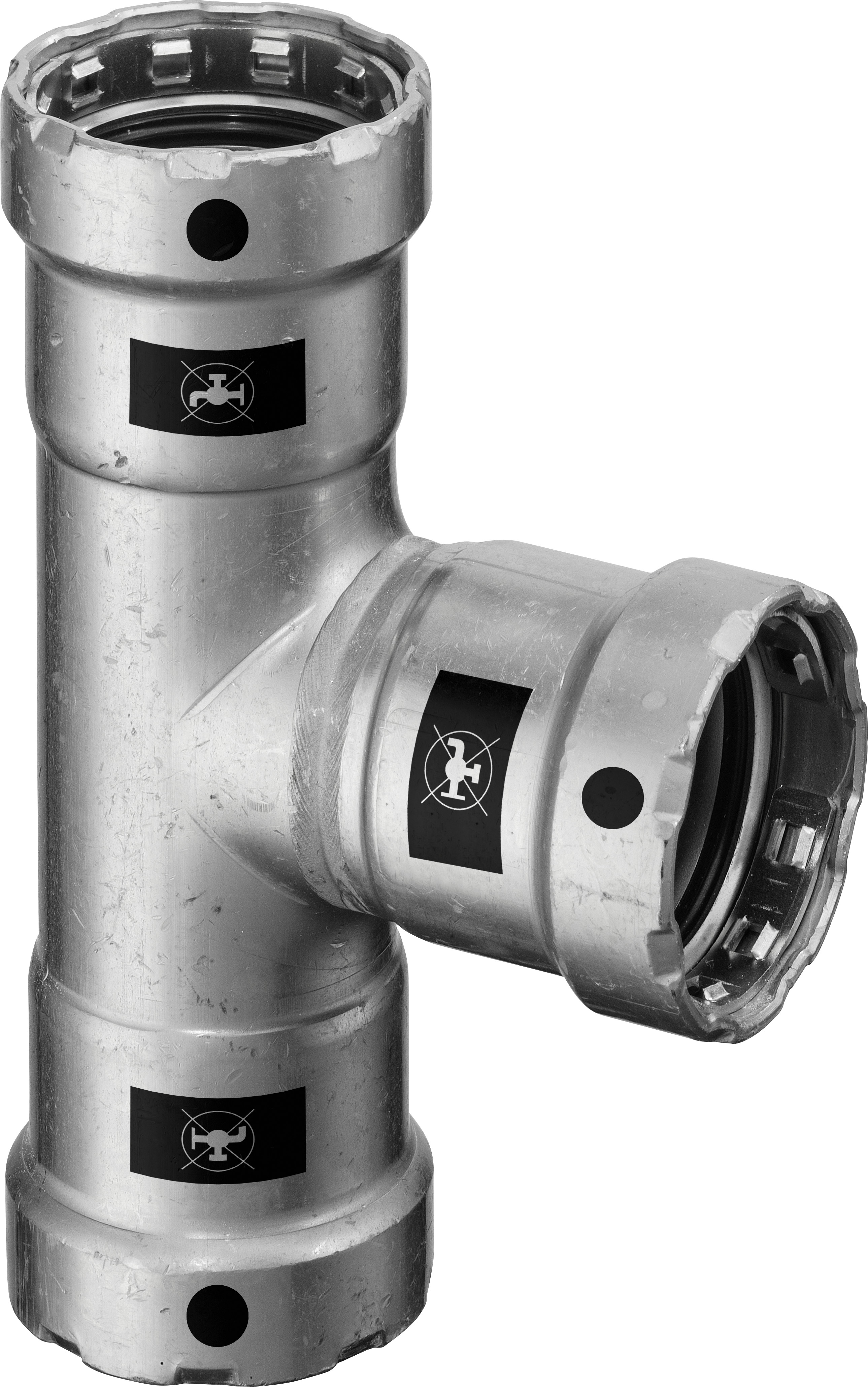

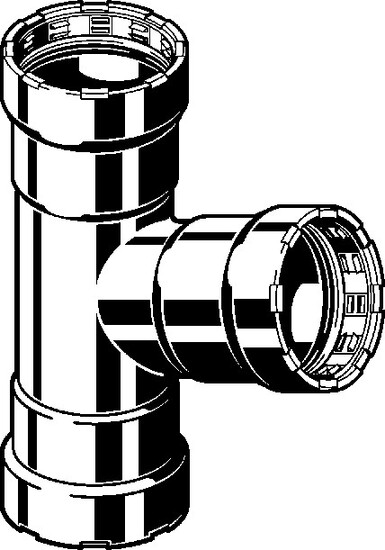

PRESS T-PIECE 4218 DN25 MEGAPRESS
Product code
0760029
The Megapress system is suitable for installation in heating, cooling, and industrial systems together with steel pipes in accordance with DIN EN 10225 and DIN EN 10220.
Features- Not suitable for use in potable water systems or for flammable gases according to DVGW G260.
- Megapress fittings may only be used together with components belonging to the system.
- Compression fittings have a leak indicator, causing clearly visible leaks if the connection is not compressed.
- Maximum operating temperature and pressure class in water circuits is 110 °C at 16 bar.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Steel
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Galvanic/electrolytic zinc plated
Surface treatment connection 1Other
Material connection 2Steel
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Galvanic/electrolytic zinc plated
Surface treatment connection 2Other
Material connection 3Steel
Material quality connection 3St 34.2 (1.0034)
Surface protection connection 3Galvanic/electrolytic zinc plated
ModelT-piece
Multi-partno
System specificyes
Nominal diameter connection 13/4 inch (20)
Product codes
SAPATD043
HPAC0760029
PLC0760029
GTIN/EAN4015211699024
Manufacturer part number699024
Vendor material number699024
Basic information
Package measurements (L x W x H)134 x 88 x 45 mm
Package volume0.531 l
Package weight0.46 kg
Base uniteach
Package units1 / 15
Package contents–
UNSPSC40172503
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (10)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.4528
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
