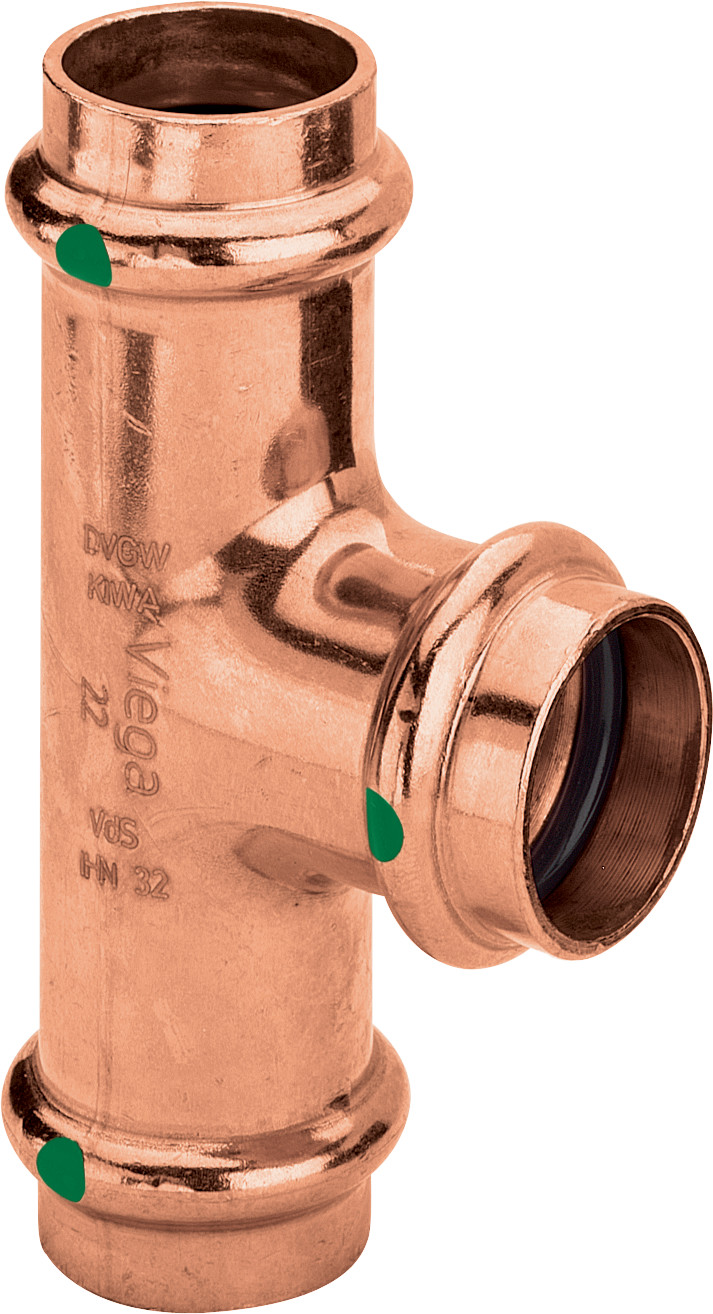

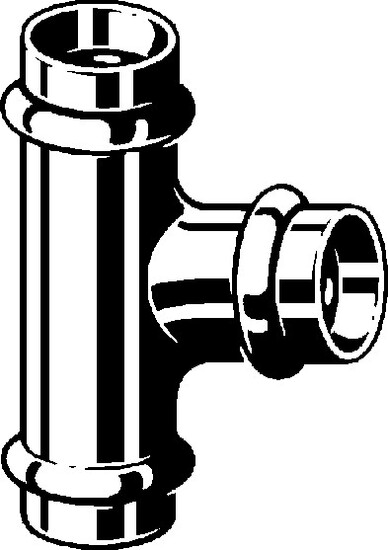

PRESS T-PIECE Cu 54 VIEGA
Product code
1546389
V-profile system for domestic water, heating, and cooling applications; compatibility with other systems' O-rings must be verified. Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring made of EPDM, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Copper
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Copper
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
Material connection 3Copper
Surface protection connection 3Untreated
Surface treatment connection 3Untreated
ModelT-piece
Multi-partyes
System specificyes
Nominal diameter connection 1Other
Product codes
SAPABS047
HPAC1546389
PLC1546389
GTIN/EAN4015211292003
Manufacturer part number292003
Vendor material number292003
Basic information
Package measurements (L x W x H)150 x 75 x 65 mm
Package volume0.731 l
Package weight0.766 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (9)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.19
GWP, uniteach
Source for GWP dataEPD
