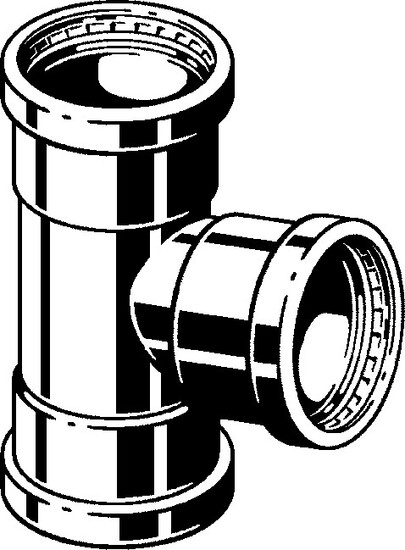

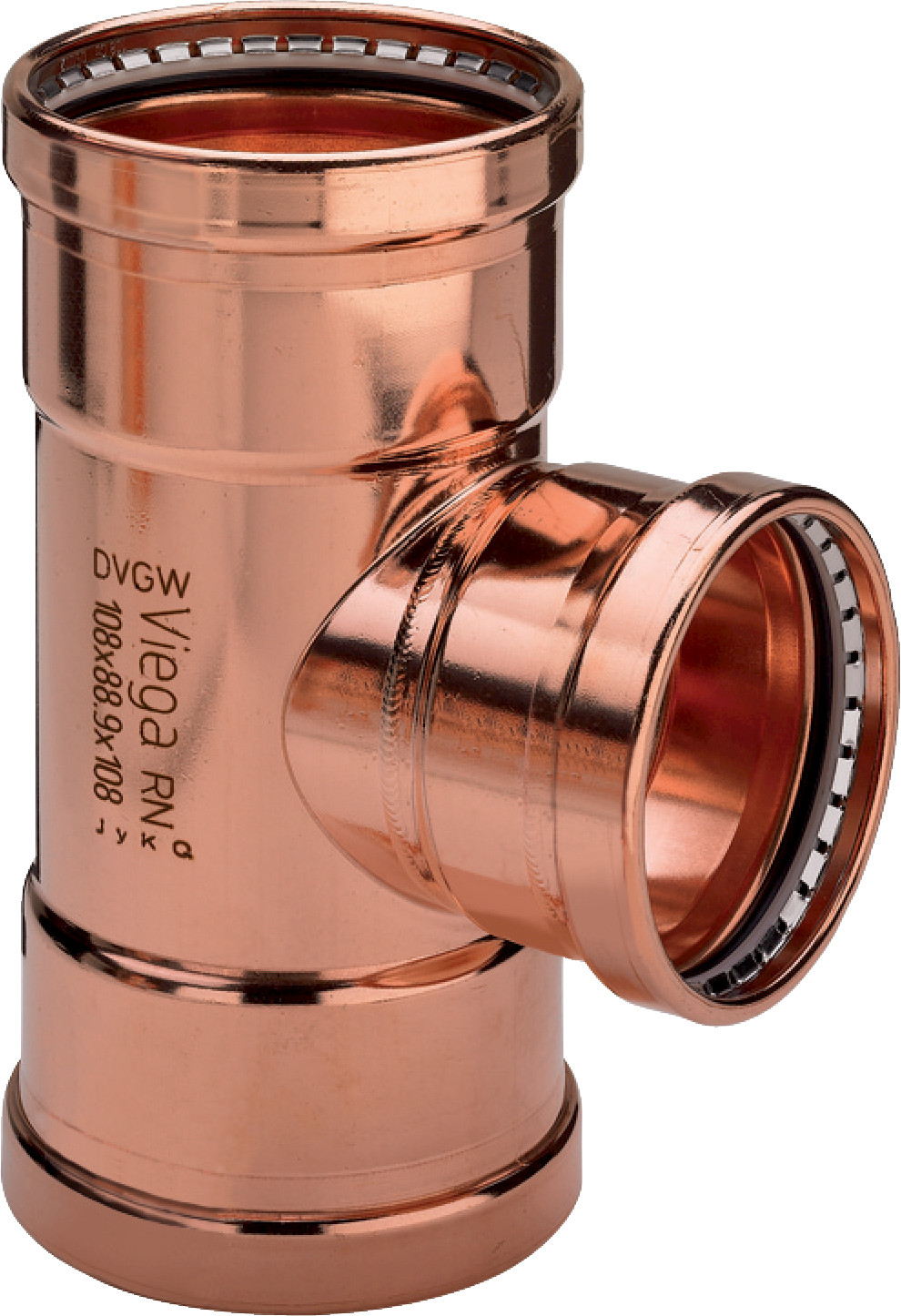

PRESS T-PIECE Cu 88,9 VIEGA
Product code
1546405
V-profile system for domestic water, heating and cooling systems "compatibility with other systems' O-rings to be verified". Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring EPDM max. +110C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Copper
Material quality connection 1Ethylene-propylene diene monomer rubber (EPDM)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Copper
Material quality connection 2Ethylene-propylene diene monomer rubber (EPDM)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
Material connection 3Copper
Material quality connection 3Ethylene-propylene diene monomer rubber (EPDM)
Surface protection connection 3Untreated
Surface treatment connection 3Untreated
ModelT-piece
System specificyes
Outer pipe diameter connection 188.9 mm
Product codes
SAPCBW603
HPAC1546405
PLC1546405
GTIN/EAN4015211476984
Manufacturer part number476984
Vendor material number476984
Basic information
Package measurements (L x W x H)160.425 x 214 x 102.85 mm
Package volume3.531 l
Package weight1.608 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)8.7958
GWP, uniteach
Source for GWP dataEPD
